The Patrol is a commercial quality range of RIBs designed and hand built to withstand the toughest conditions.

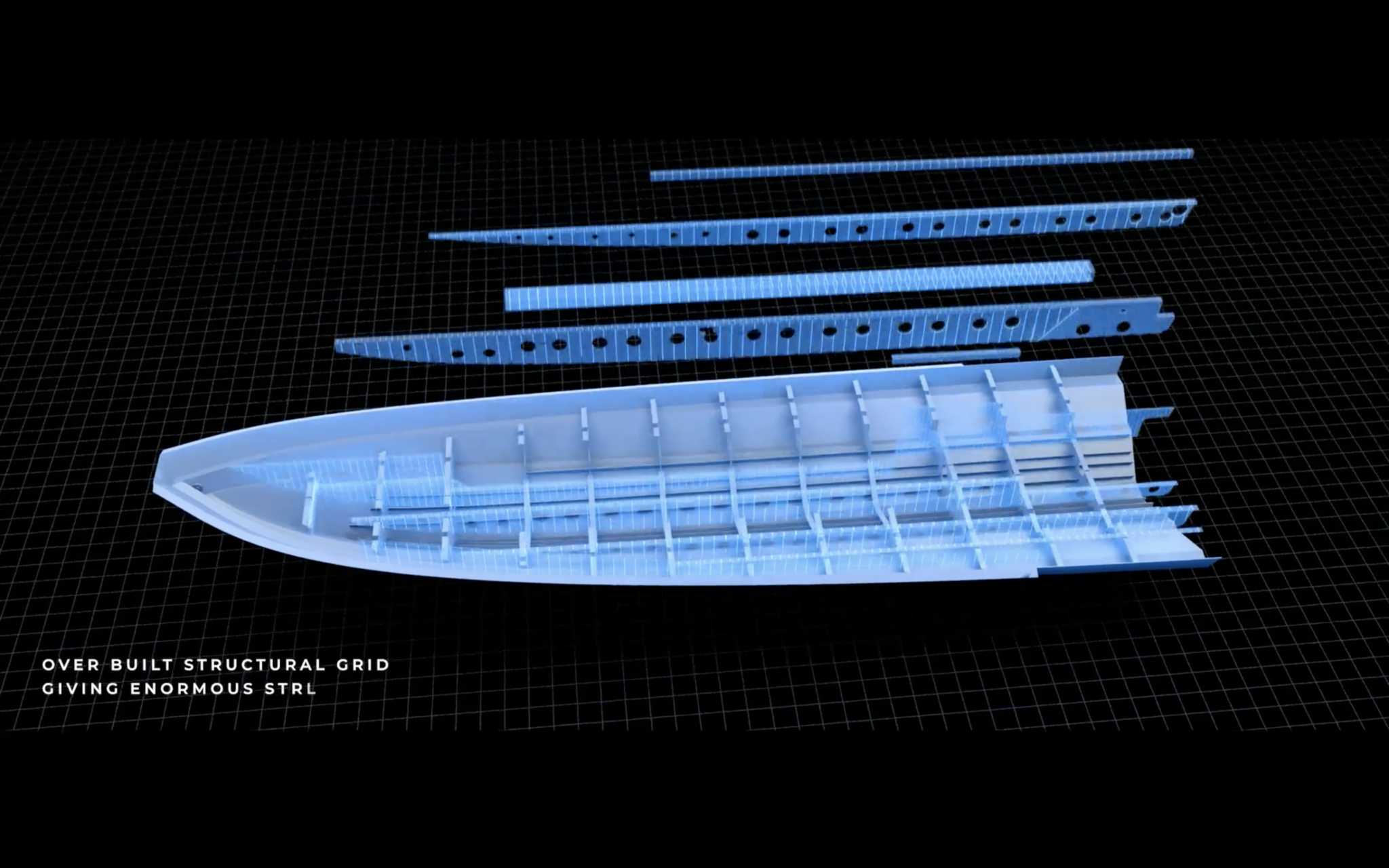

The hull is built in 5mm 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high maneuverability, high safety and a soft dry ride even in the roughest conditions.

The Patrol boats carry large loads and plane quickly and easily with little horsepower.

These boats are ideal pursuit craft or work boat and can be configured with different seating and console options.

When safety, toughness and reliability matter the Patrol range will be your first choice.


  • ORCA® Hypalon tube
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Integrated transom supports
  • Self-draining deck
  • Integrated under-deck fuel tank
  • Integrated rear seat with cushion
  • Engine well
  • Standup console
  • Bolster seat
  • Bow locker with seat cushion
  • Lifting points and towing eyes
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Highfield dry bag
  • Foot pump, paddles, repair kit
  • Leaning post


  • Jockey seats
  • Suspension jockey seat
  • Flip-up bolster seat
  • Roll bar
  • Ladder
  • Brushed foam teak finish deck
Overall Length 7.60 m 24' 11"
Internal Length 5.90 m 19' 4"
Overall Width 2.83 m 9'4"
Internal Width 1.69 m 5' 7"
Dead Rise 24°
Tube Diameter 56-40 cm 22"-16"
Number of Air Chambers 6
Maximum Load 1430 kg 3153 lb
Maximum People 12
Boat Only Weight 980 kg 2161 lb
Recommended Power 200 hp
Maximum Power 300 hp
Engine Shaft XL
Fuel Tank 285 l 75.2 gal
Design Category C

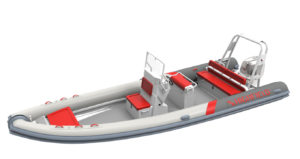

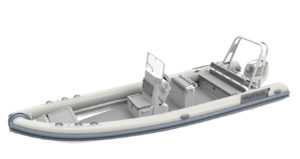

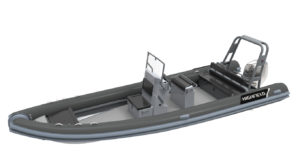

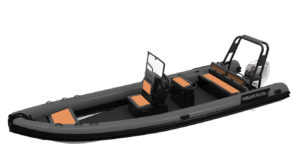

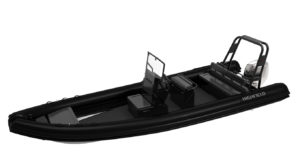

Colour Schemes

Detail Images
