The Patrol 500 offers a larger console & the chance to customise the layout to your needs with a choice between bolster and jockey seats, or even an opt for our suspension shock seating. 100hp of power makes this the perfect small workhouse & the optional dive rack adds to this model’s capacity for adventure.
5.00m
10
90l
100hp
16' 5"
10
23.7gal
100hp
Key Features

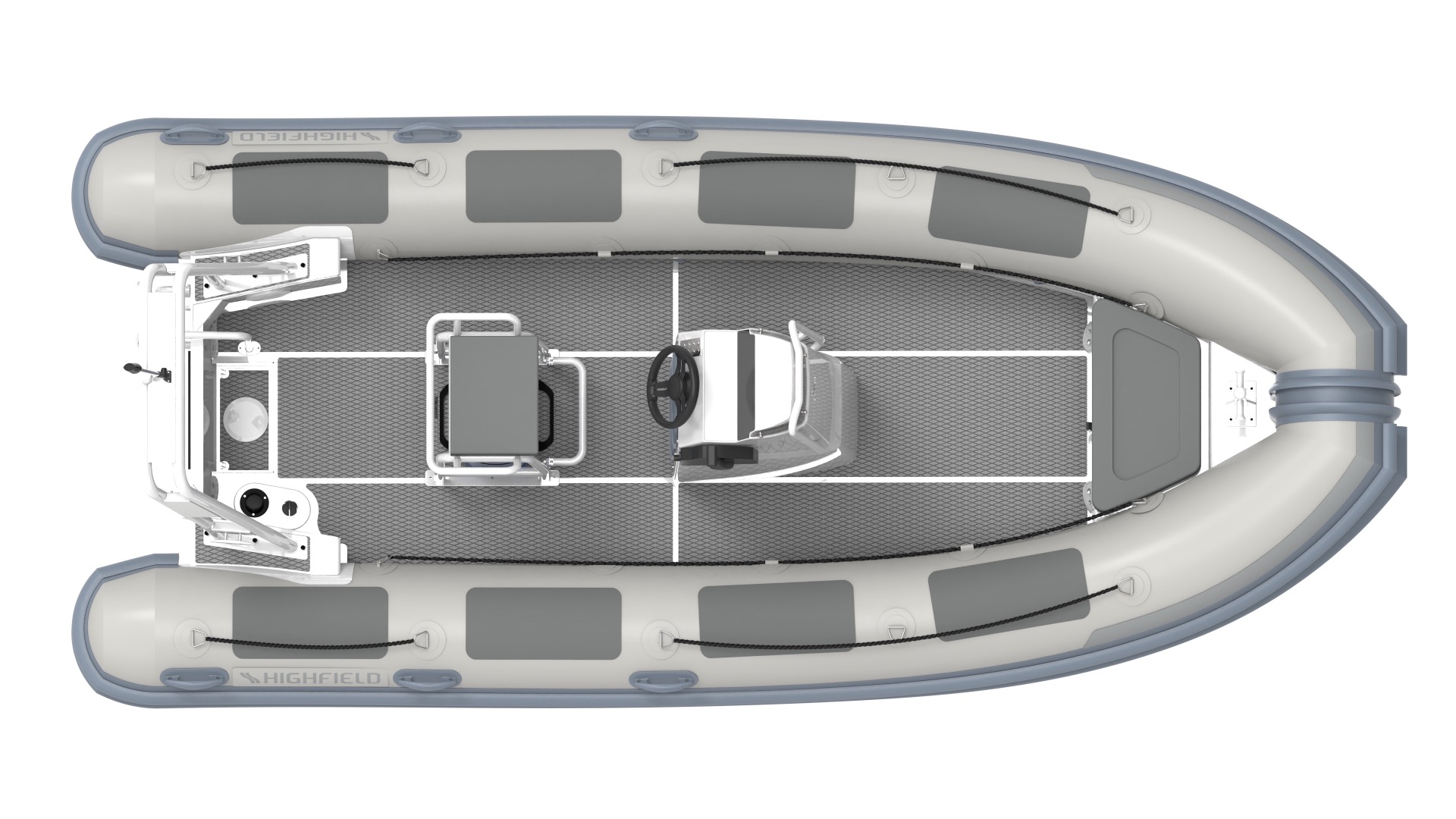

Modular Layouts
Make your Patrol your own. Our Patrol range offers a totally configurable layout, customising to your exact needs.
SUS500 Console
Jockey Seating
SUS500 Console
Flipdown Bolster
SUS500 Console
Bucket Seat Bolster
5 COLOUR SCHEMES
Specifications
Overall Length
5.00m
Internal Length
4.16m
Overall Width
2.28m
Internal Width
1.2m
Dead Rise
24°
Tube Diameter
52cm
# of Air Chambers
6
Maximum Load
1135 kg
Maximum People
10
Boat only Weight
441kg
Fuel Tank
90l
Max HP
100hp
Engine Shaft
L
Design Category
C
Package size for boat (l x w x h)
470 x 130 x 105cm
Overall Length
16' 5"
Internal Length
13' 8"
Overall Width
7' 6"
Internal Width
3' 11"
Dead Rise
24°
Tube Diameter
20''
# of Air Chambers
6
Maximum Load
2502lb
Maximum People
10
Boat only Weight
972lb
Fuel Tank
23.7gal
Max HP
100hp
Engine Shaft
L
Design Category
C
Package size for boat (l x w x h)
15'4" x 4'3" x 3’5"
Standard Features
- ORCA® Hypalon or PVC tube
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Steering wheel
- Integrated under-deck fuel tank
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Carbon dash
- Electrical pack for console
- Electrical pack for boat
- Transom ladder
- Bow cushion
- Welded seams (PVC)
- Tow bridle points
- Highfield dry bag
- Foot pump, oars, repair kit
Optional Equipment
- Console & seat options
- Suspension seat with shock
- Dive rack
- Roll Bar
- Rear Tow Post
I’ve been using inflatables and RIBS for the last 30 years or so for everything from a day out with the family to a front line lifeboat, and most things in between. For the last 3 years I’ve been using a Highfield Patrol 600 for safety covers, family days out and as a media / marshal boat. She has been a revelation! Plenty of room in front and behind the console gives crews, medics and photographers space to operate, the massive lockers places to store equipment and the double spray rails the dryest ride I’ve ever experienced. Even more importantly, the feeling of robustness and safety that the high bow and hull construction gives me when the family are on board means we are happy to explore further, in comfort, then we ever have.
Andy
