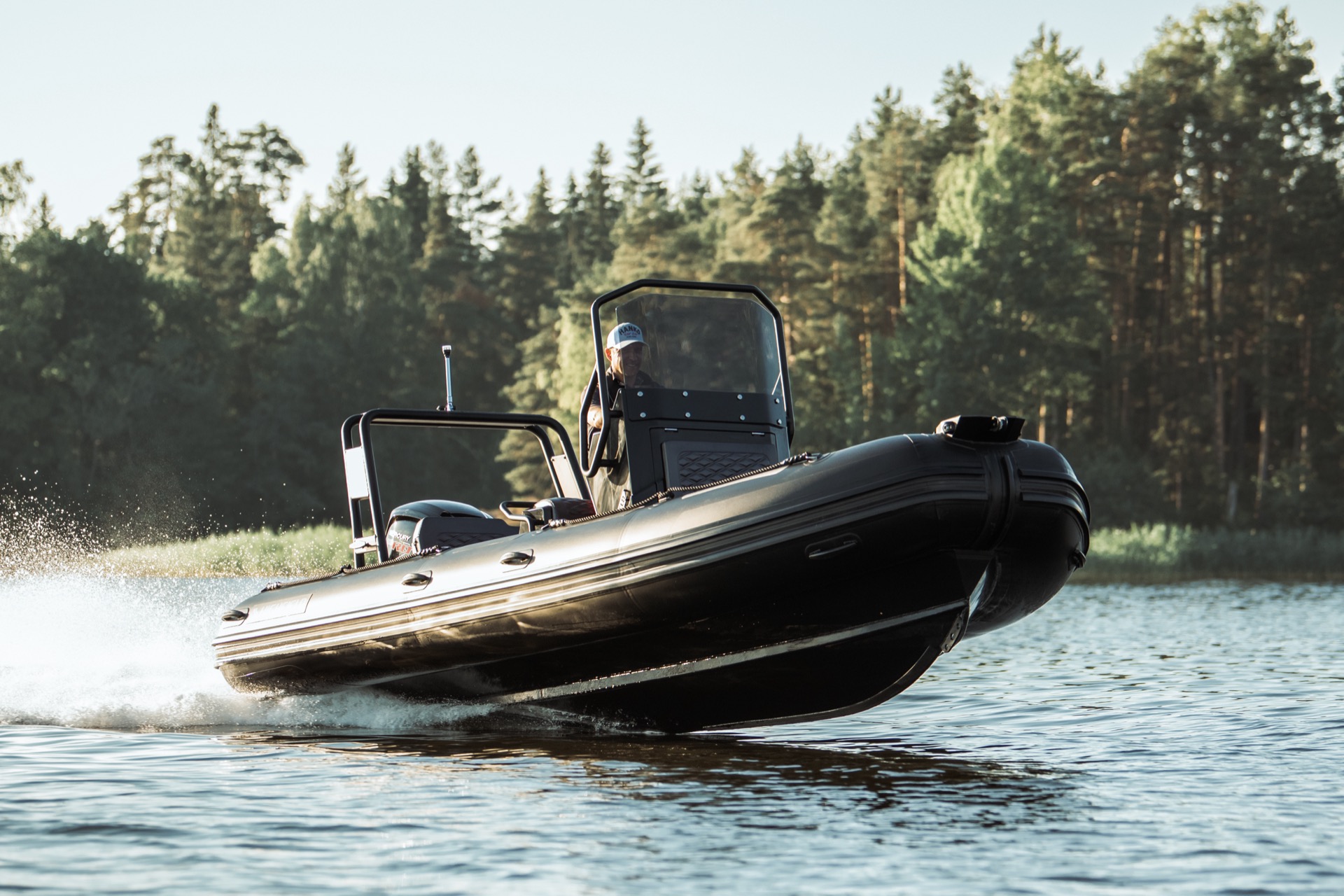

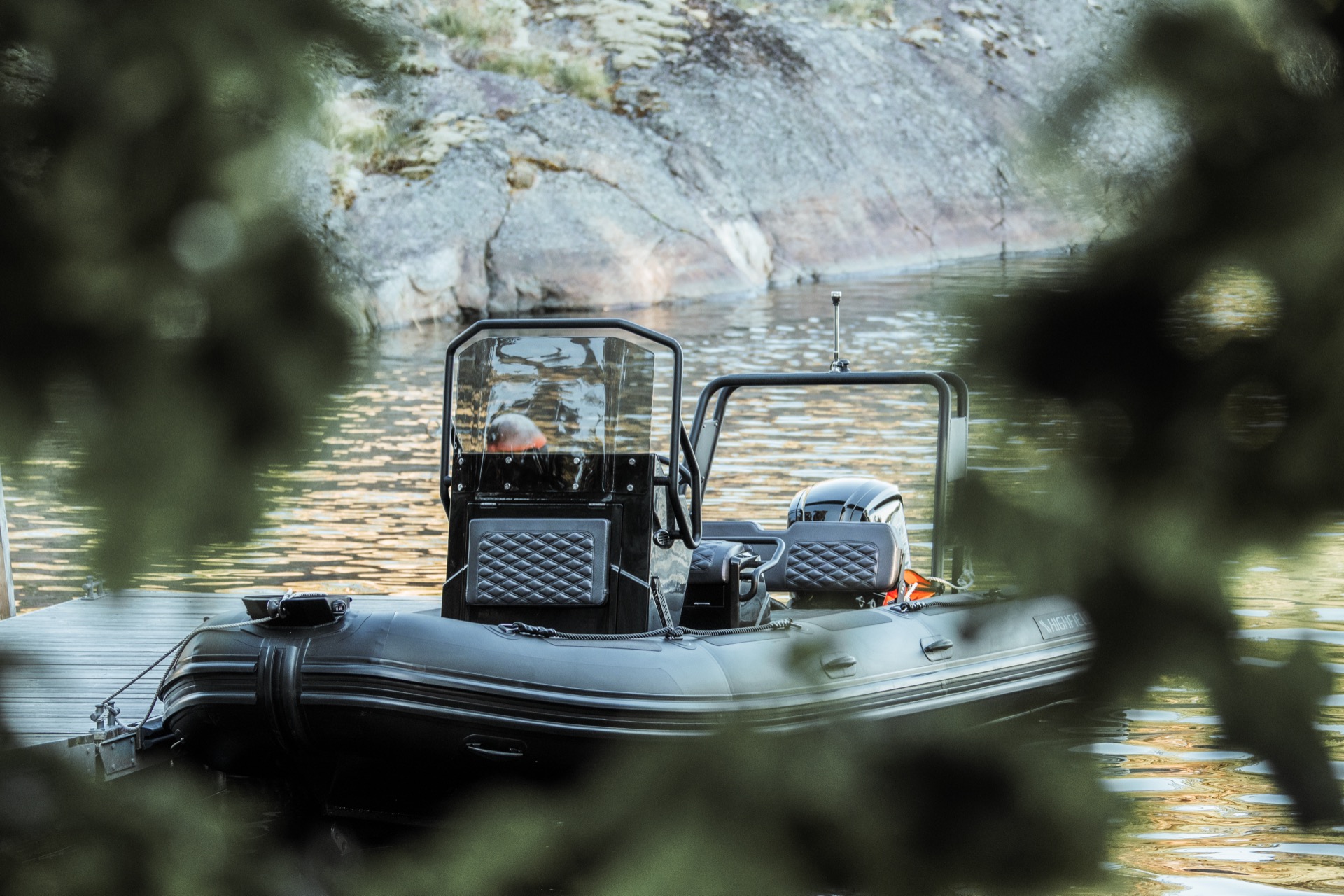

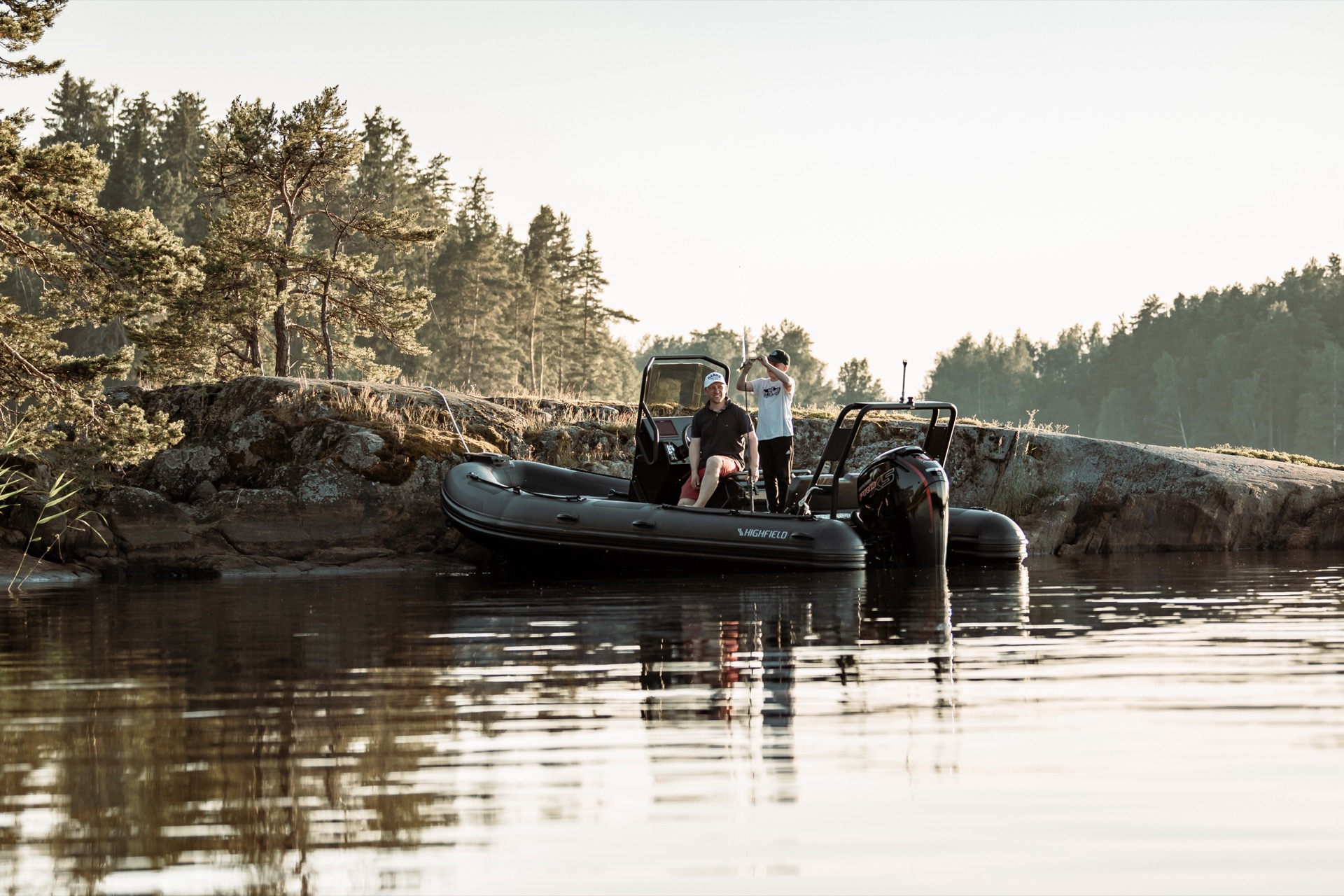

This model gives the best of both worlds: a strong, spacious workhorse whilst still being easy to manoeuvre, slip & tow. The Patrol 540 is equally at home working in a commercial setting as it is as a rugged family cruiser.
5.40m
12
105l
115hp
17' 9"
12
27.7gal
115hp
Key Features

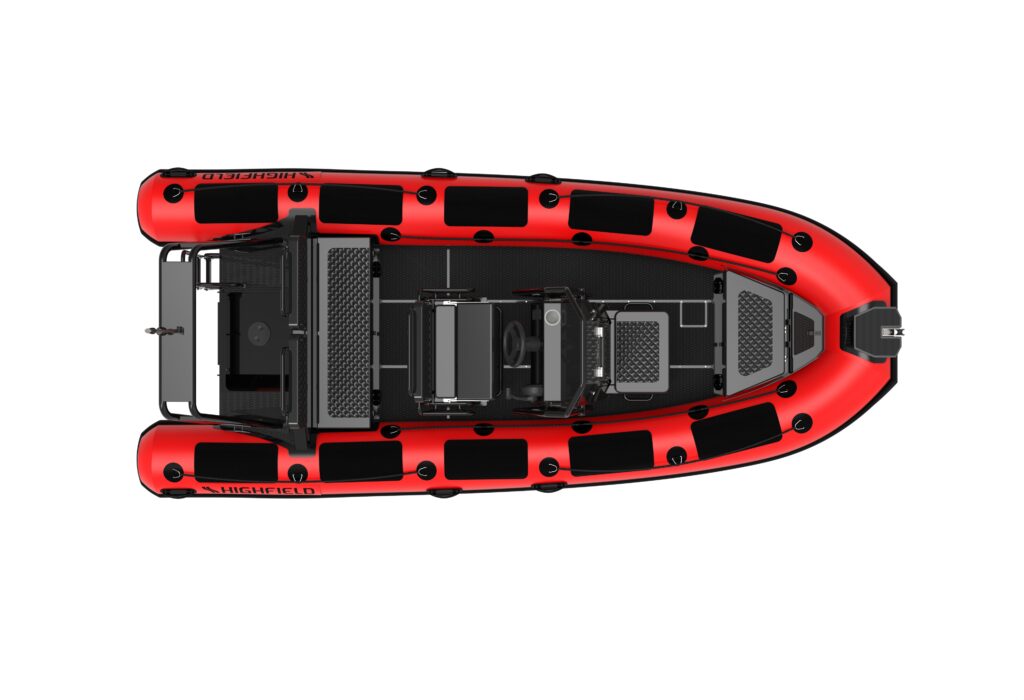

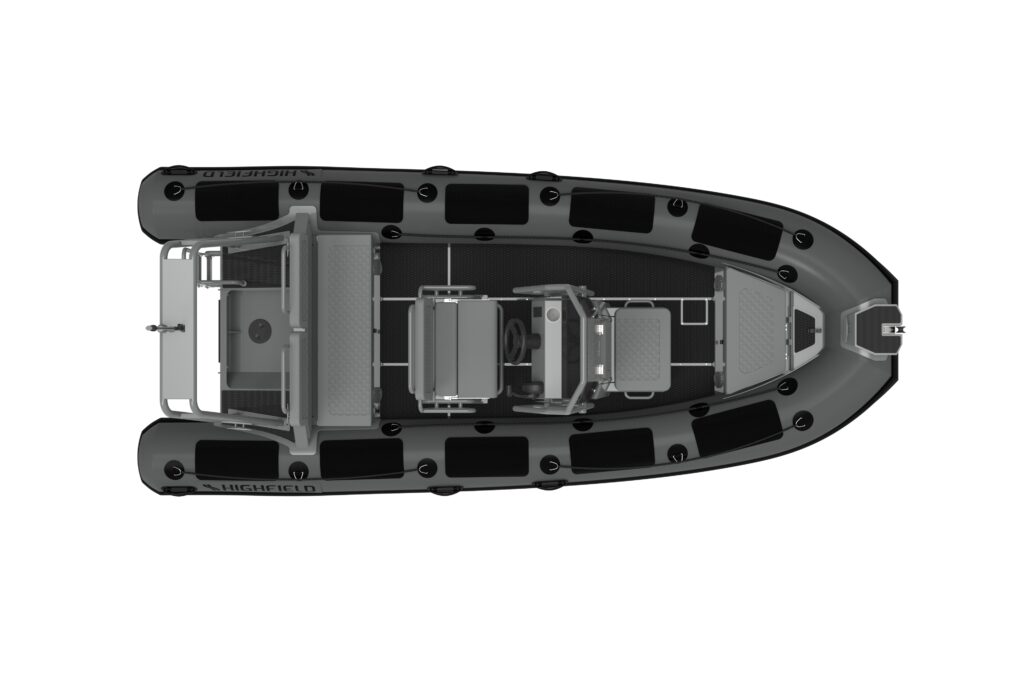

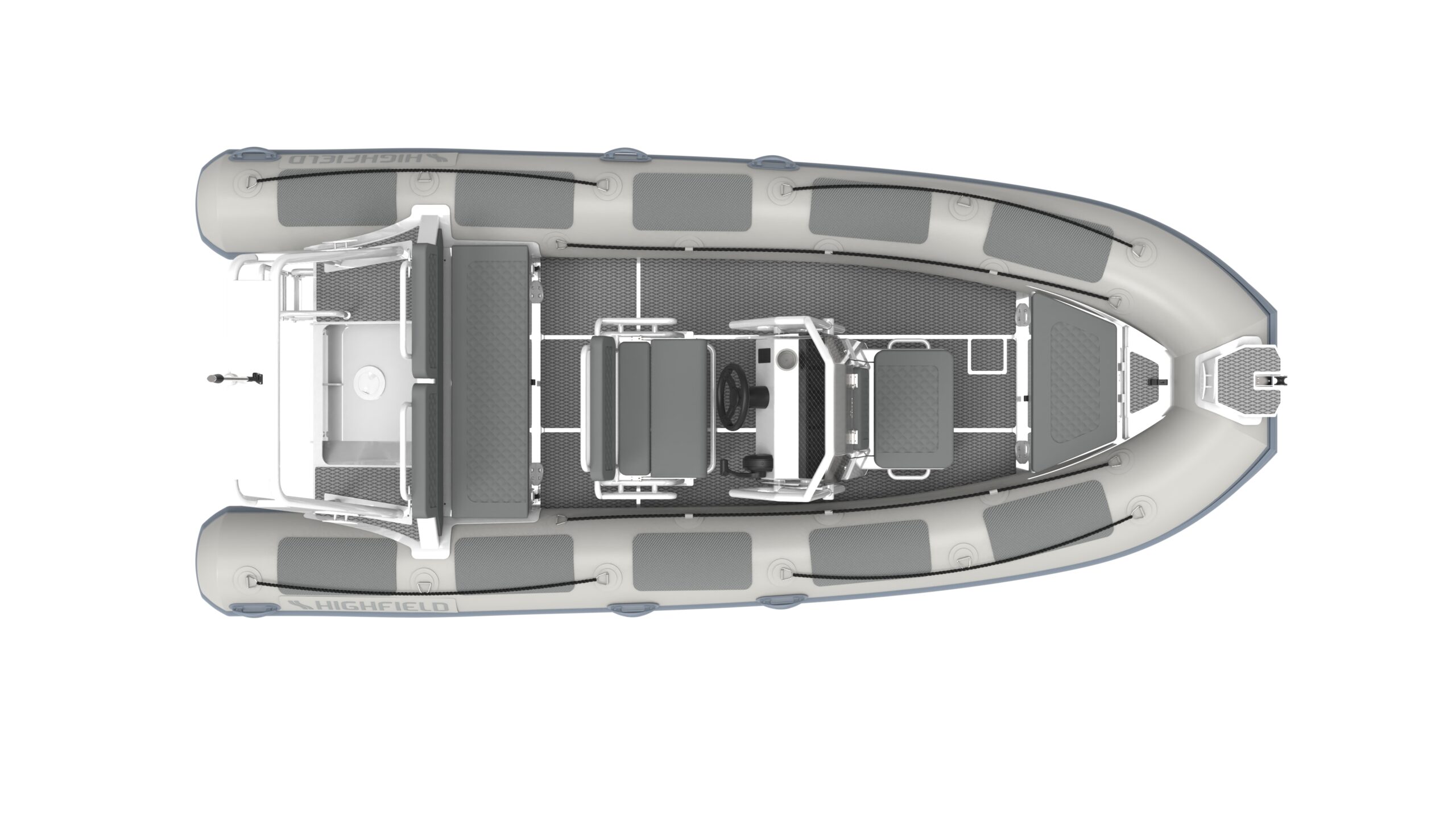

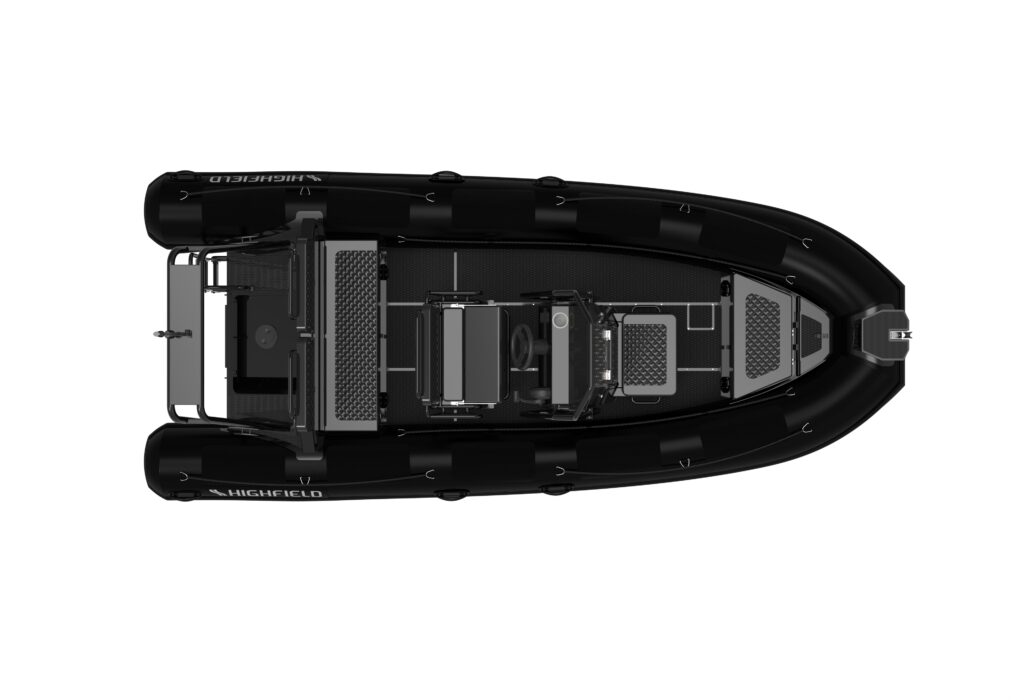

Modular Layouts
Make your Patrol your own. Our Patrol range offers a totally configurable layout, customising to your exact needs.
SUS540 Console
Jockey Seating
SUS540 Console
Flipdown Bolster
SUS540 Console
Bucket Seat Bolster

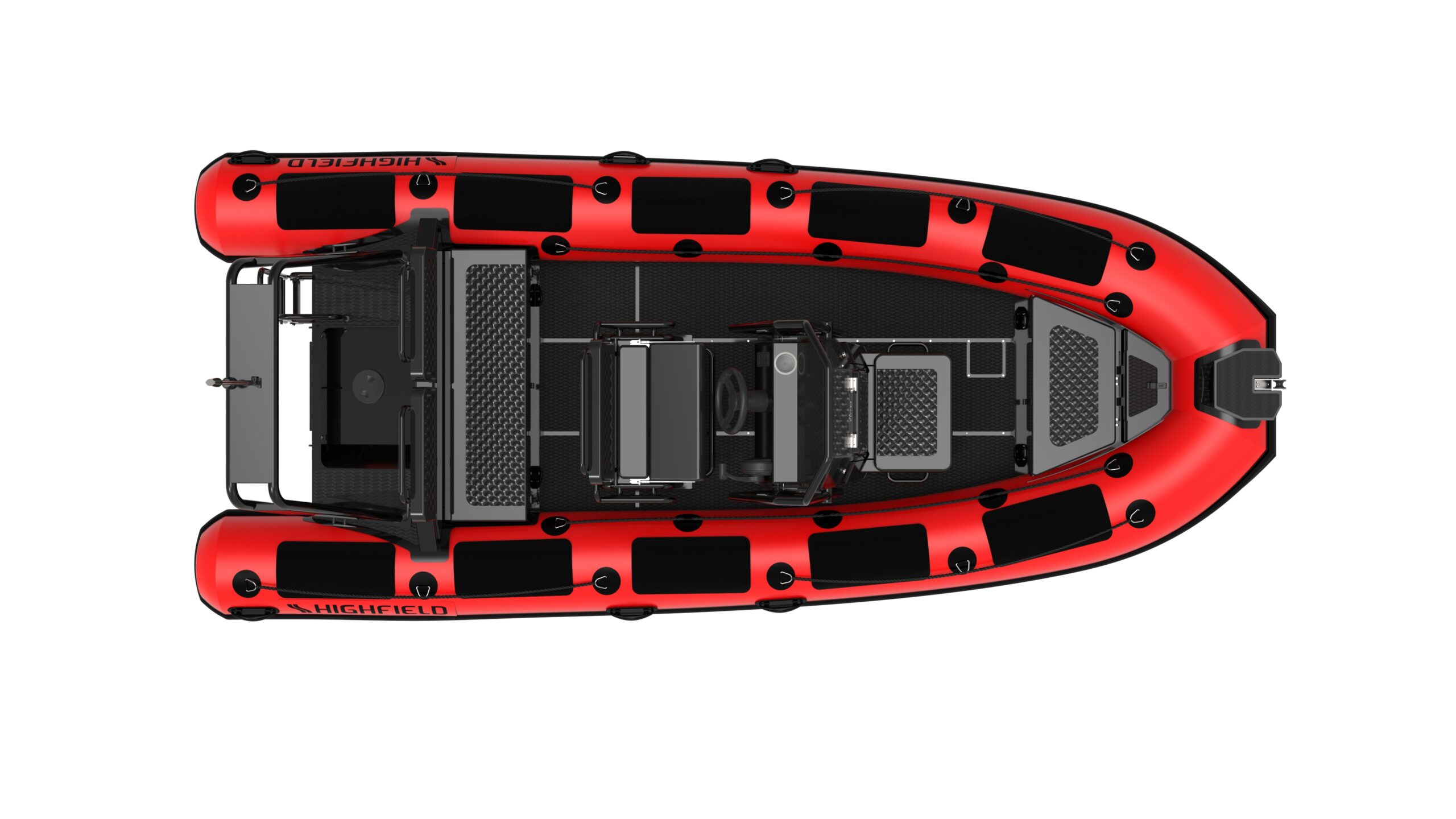

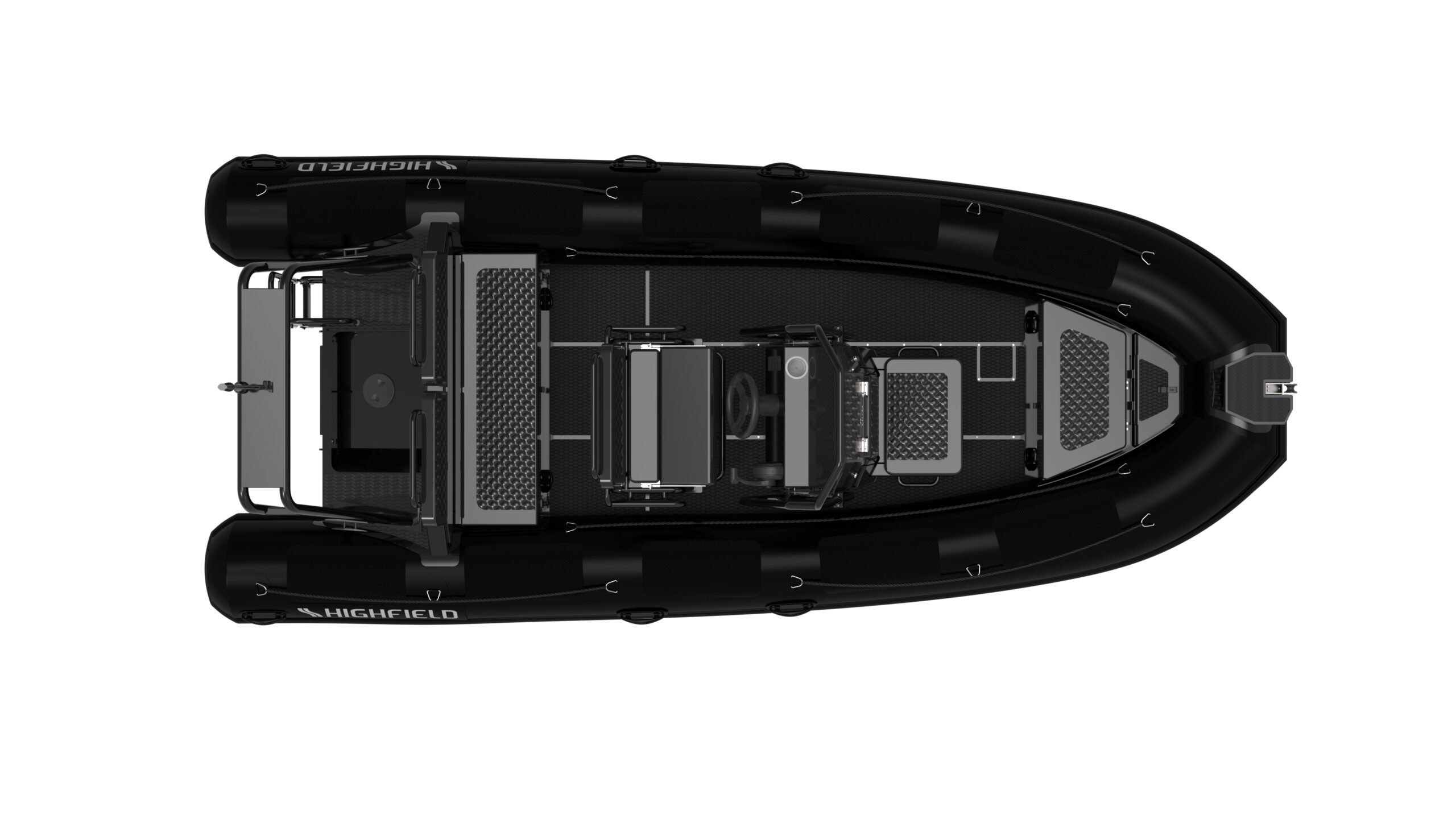

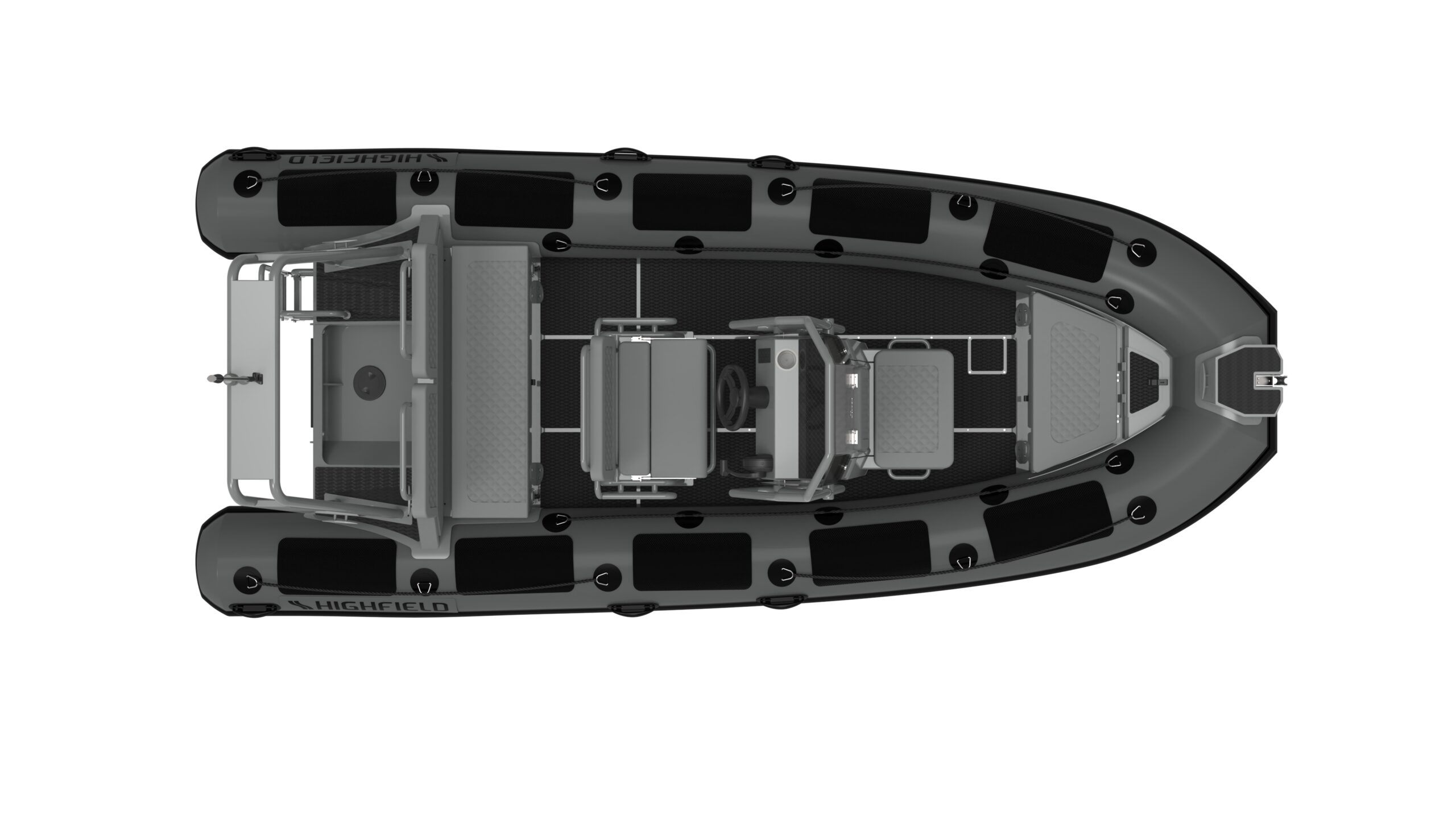

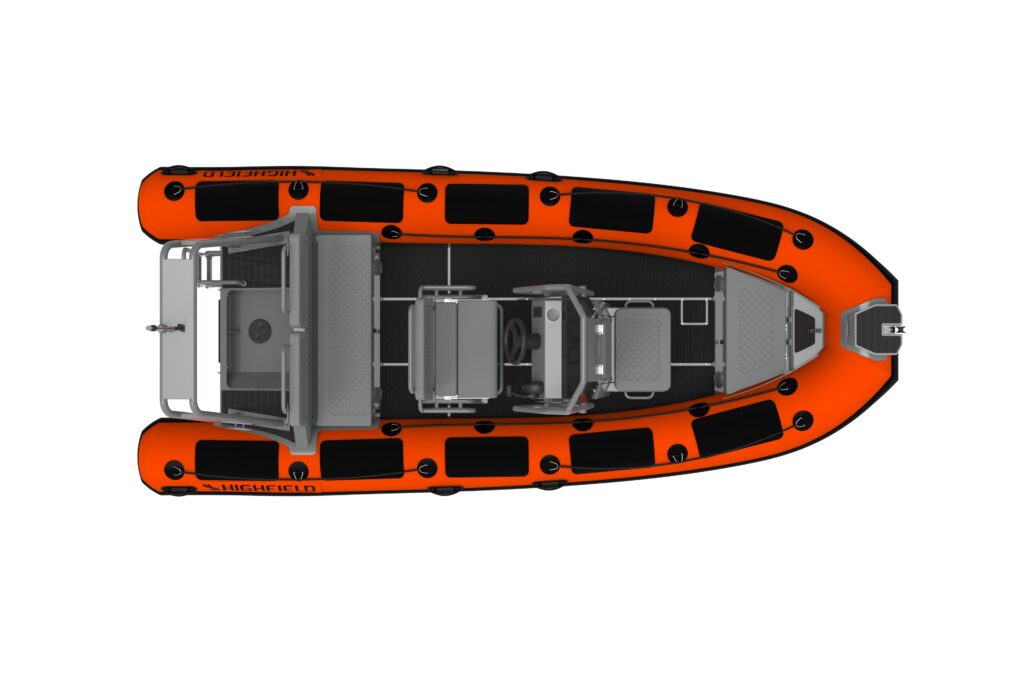

5 COLOUR SCHEMES
Specifications
Overall Length
5.40m
Internal Length
4.30m
Overall Width
2.48m
Internal Width
1.33m
Dead Rise
24°
Tube Diameter
52 cm
# of Air Chambers
6
Maximum Load
1375 kg
Maximum People
12
Boat only Weight
574kg*
Fuel Tank
105l
Max HP
115hp
Engine Shaft
XL Single
Design Category
C
Package size for boat (l x w x h)
510 x 130 x 105cm
Overall Length
17' 9"
Internal Length
14' 1"
Overall Width
8' 2"
Internal Width
4' 4"
Dead Rise
24°
Tube Diameter
20"
# of Air Chambers
6
Maximum Load
3031 lb
Maximum People
12
Boat only Weight
1264lb*
Fuel Tank
27.7gal
Max HP
115hp
Engine Shaft
XL Single
Design Category
C
Package size for boat (l x w x h)
16'7" x 4'3" x 3’5"
Standard Features
- ORCA® Hypalon or PVC tube
- Bow Cushion
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Steering wheel
- Integrated under-deck fuel tank
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Carbon dash
- Electrical pack for console
- Electrical pack for boat
- Transom ladder
- Bow cushion
- Welded seams (PVC)
- Highfield dry bag
- Foot pump, oars, repair kit
Optional Equipment
- Console & seat options
- T-Top
- Suspension seat with shock
- Dive rack
- Roll Bar
