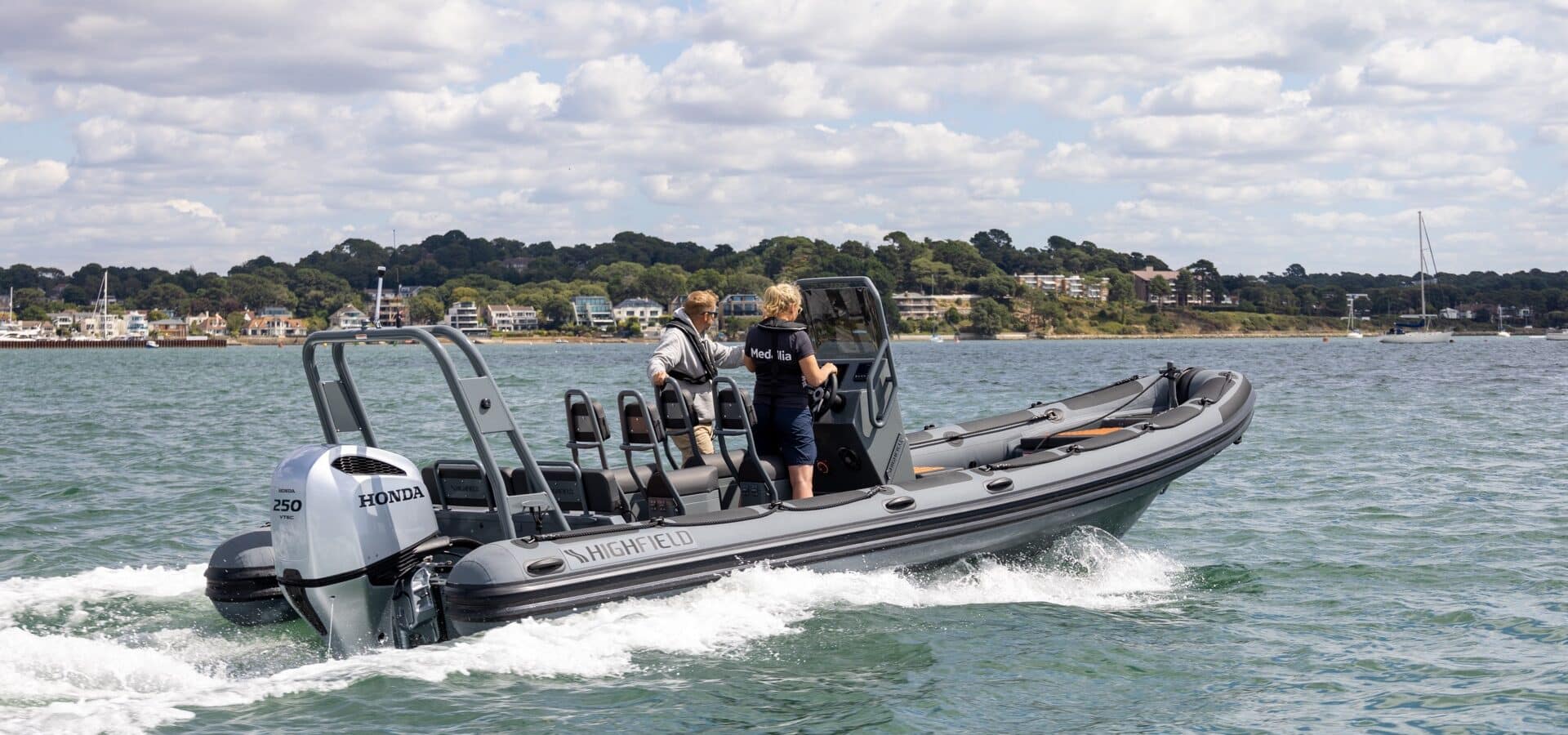

This particular model is the support boat of choice for many offshore sailing teams & events and you can see why… The Patrol 760 is a powerful long-range cruiser that pairs huge storage & functionality with its world-renowned 26 degree deadrise hull, meaning this RIB is able to cope with the most challenging conditions safely & comfortably.
7.64m
16
285l
300hp
25'1''
16
75.2 gal
300hp
Key Features
Modular Layouts
Make your Patrol your own. Our Patrol range offers a totally configurable layout, customising to your exact needs.
SUS970 Console
Jockey Seating
SUS970 Console
Flipdown Bolster
SUS970 Console
Bucket Seat Bolster
COLOUR SCHEMES
Specifications
Overall Length
7.64m
Internal Length
5.83m
Overall Width
2.82m
Internal Width
1.65m
Dead Rise
26°
Tube Diameter
54cm
# of Air Chambers
6
Maximum Load
1820kg
Boat only Weight
1020kg
Maximum People - Cat B
8
Maximum People - Cat C
16
Fuel Tank
285l
Engine Shaft
L Twin
XL Single
Max HP Single
300hp
Max HP Twin
2*150hp
Design Category
C or B
Overall Length
25'1''
Internal Length
19' 1"
Overall Width
9' 3"
Internal Width
5' 5"
Dead Rise
26°
Tube Diameter
21''
# of Air Chambers
6
Maximum Load
4012lb
Boat only Weight
2249lb
Maximum People - Cat B
8
Maximum People - Cat C
16
Fuel Tank
75.2 gal
Engine Shaft
L Twin
XL Single
Max HP Single
300hp
Max HP Twin
2*150hp
Design Category
C or B
Standard Features
- ORCA® Hypalon
- Bow Cushion
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Steering wheel
- Integrated under-deck fuel tank
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Carbon dash
- Electrical pack for console
- Electrical pack for boat
- Transom ladder
- Bow cushion
- Highfield dry bag
- Foot pump, oars, repair kit
Optional Equipment
- Console & seat options
- Roll Bar with ladder

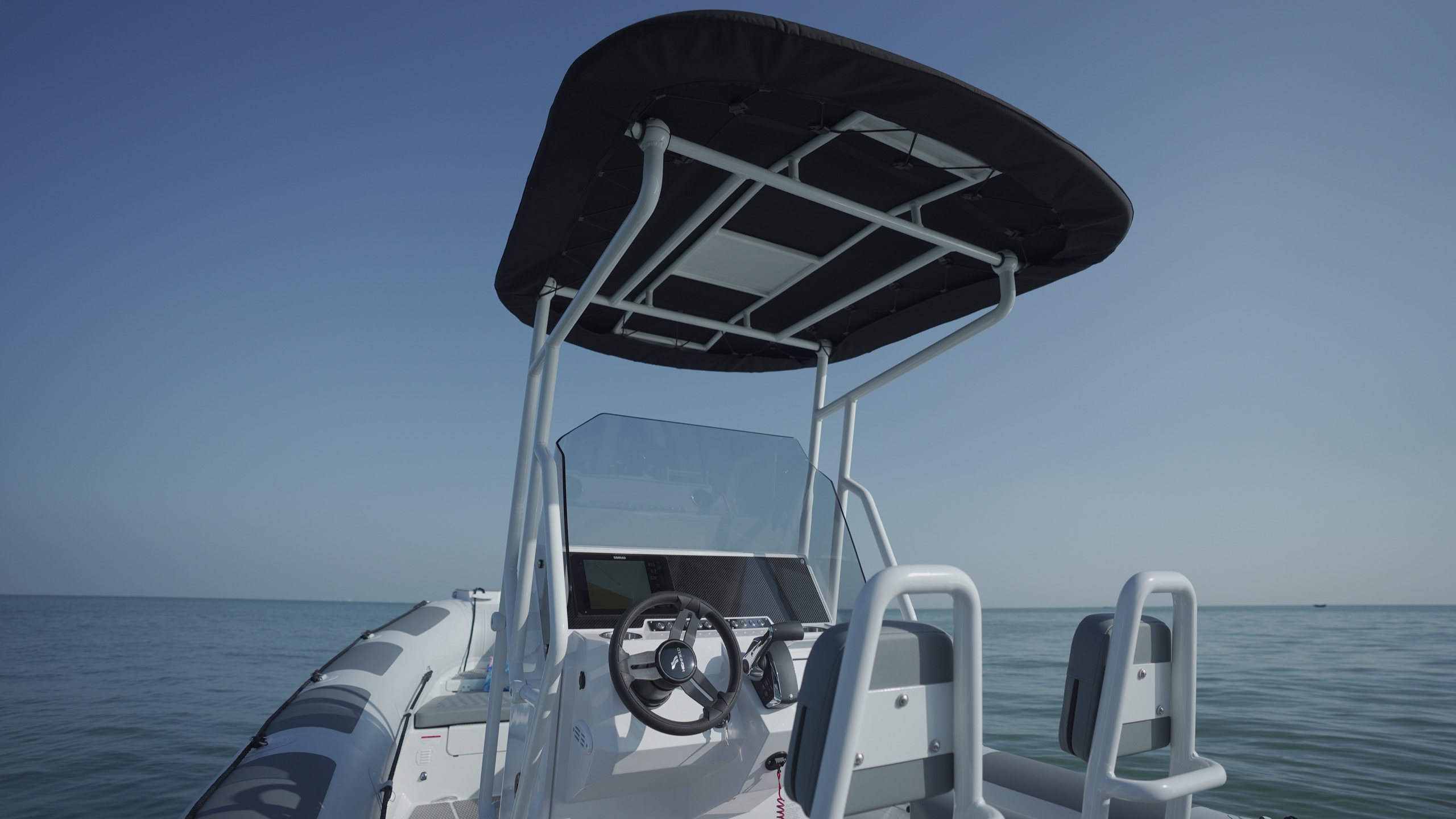

- T-Top
- Suspension seat with shock
- Dive rack
- Deck wash
I’ve been using inflatables and RIBS for the last 30 years or so for everything from a day out with the family to a front line lifeboat, and most things in between. For the last 3 years I’ve been using a Highfield Patrol 600 for safety covers, family days out and as a media / marshal boat. She has been a revelation! Plenty of room in front and behind the console gives crews, medics and photographers space to operate, the massive lockers places to store equipment and the double spray rails the dryest ride I’ve ever experienced. Even more importantly, the feeling of robustness and safety that the high bow and hull construction gives me when the family are on board means we are happy to explore further, in comfort, then we ever have.
Andy
