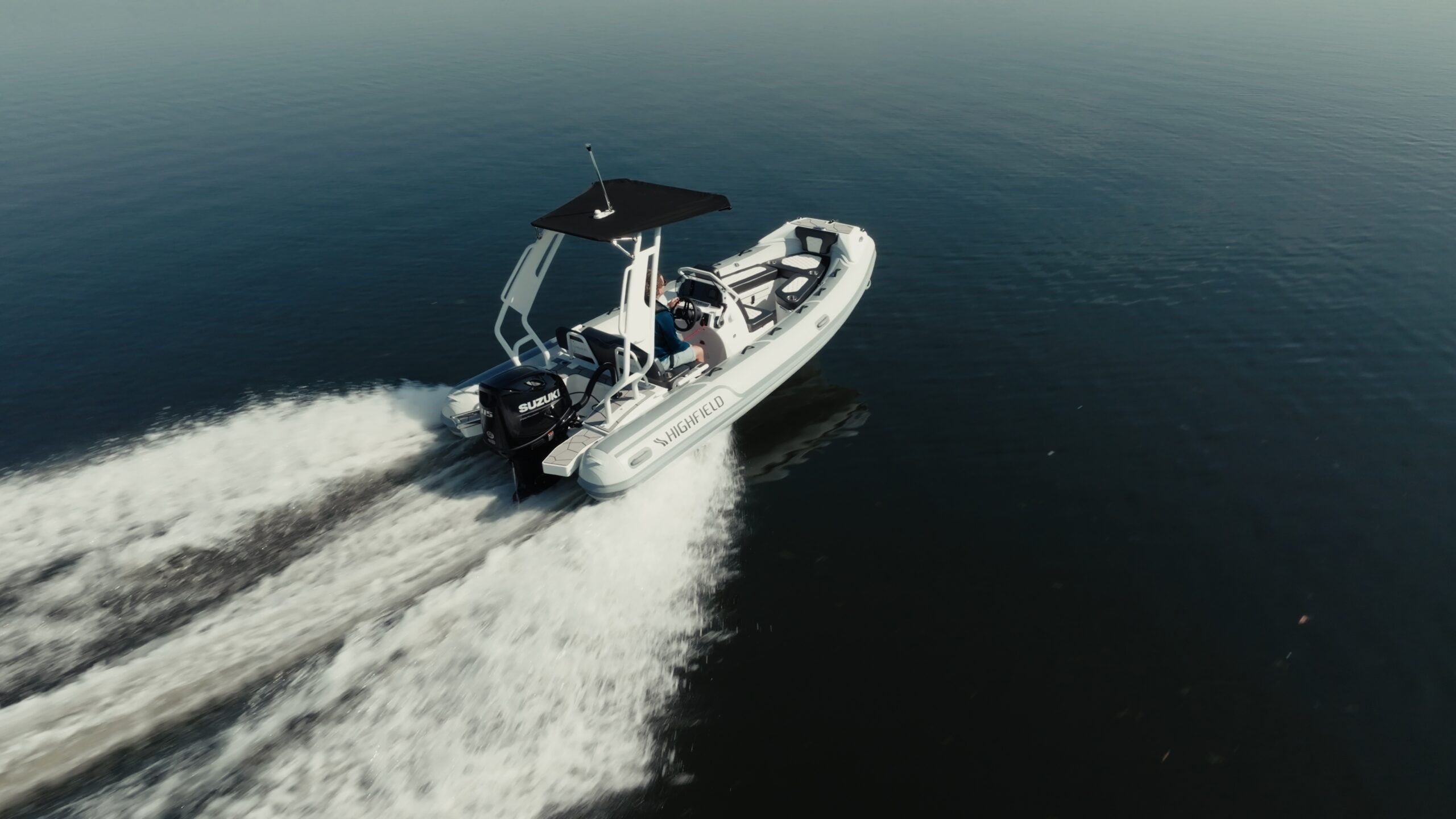

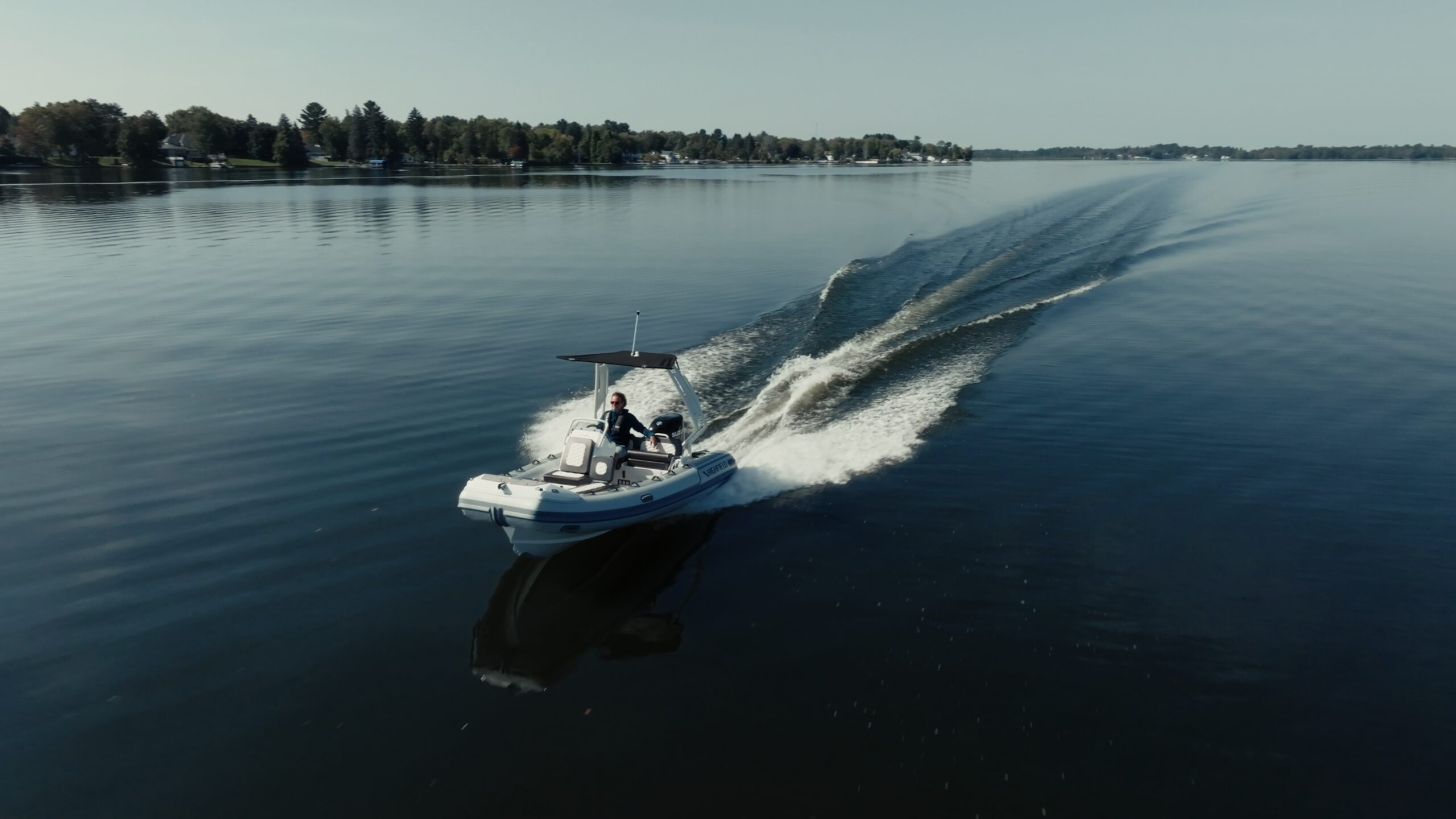

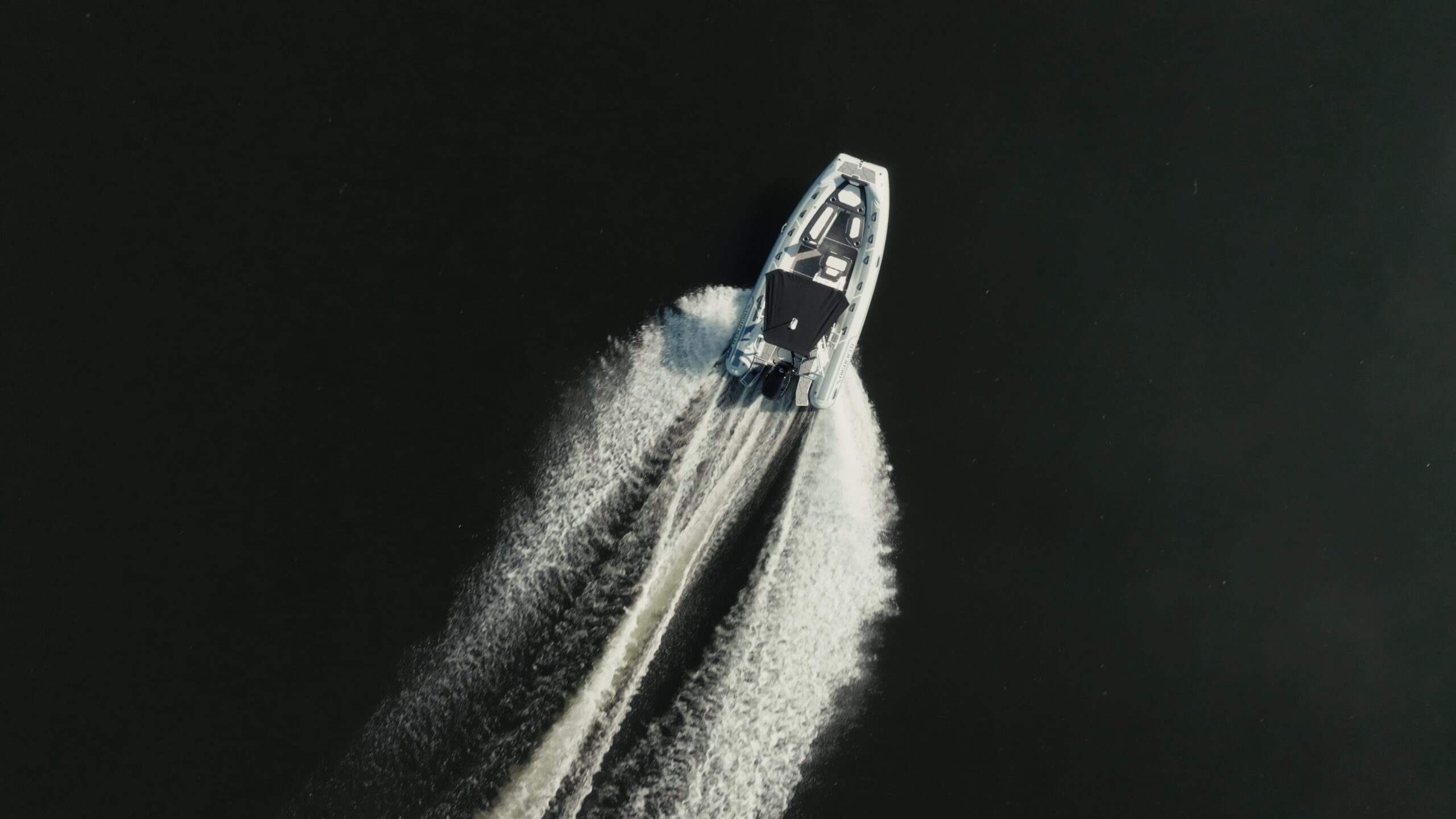

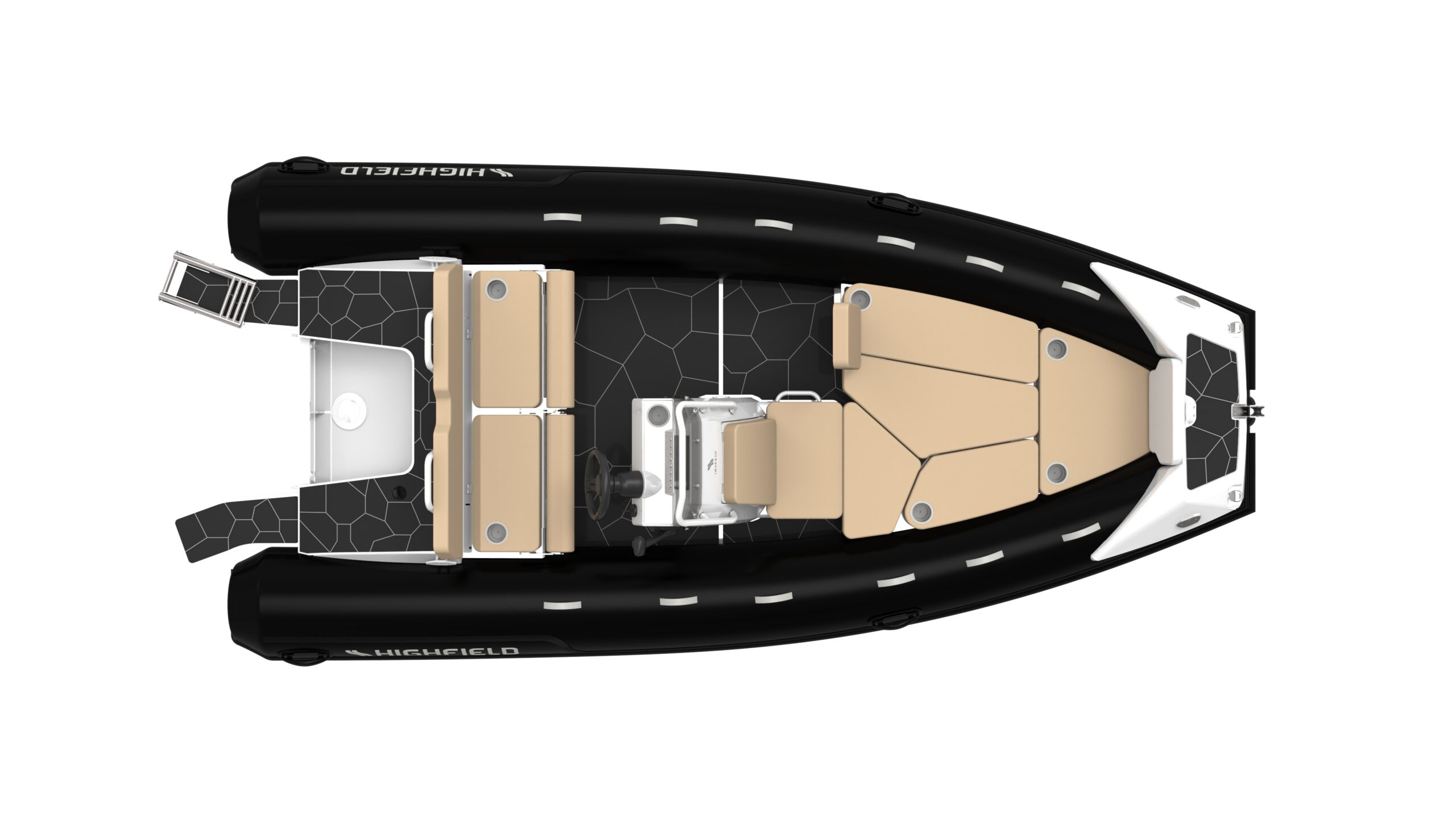

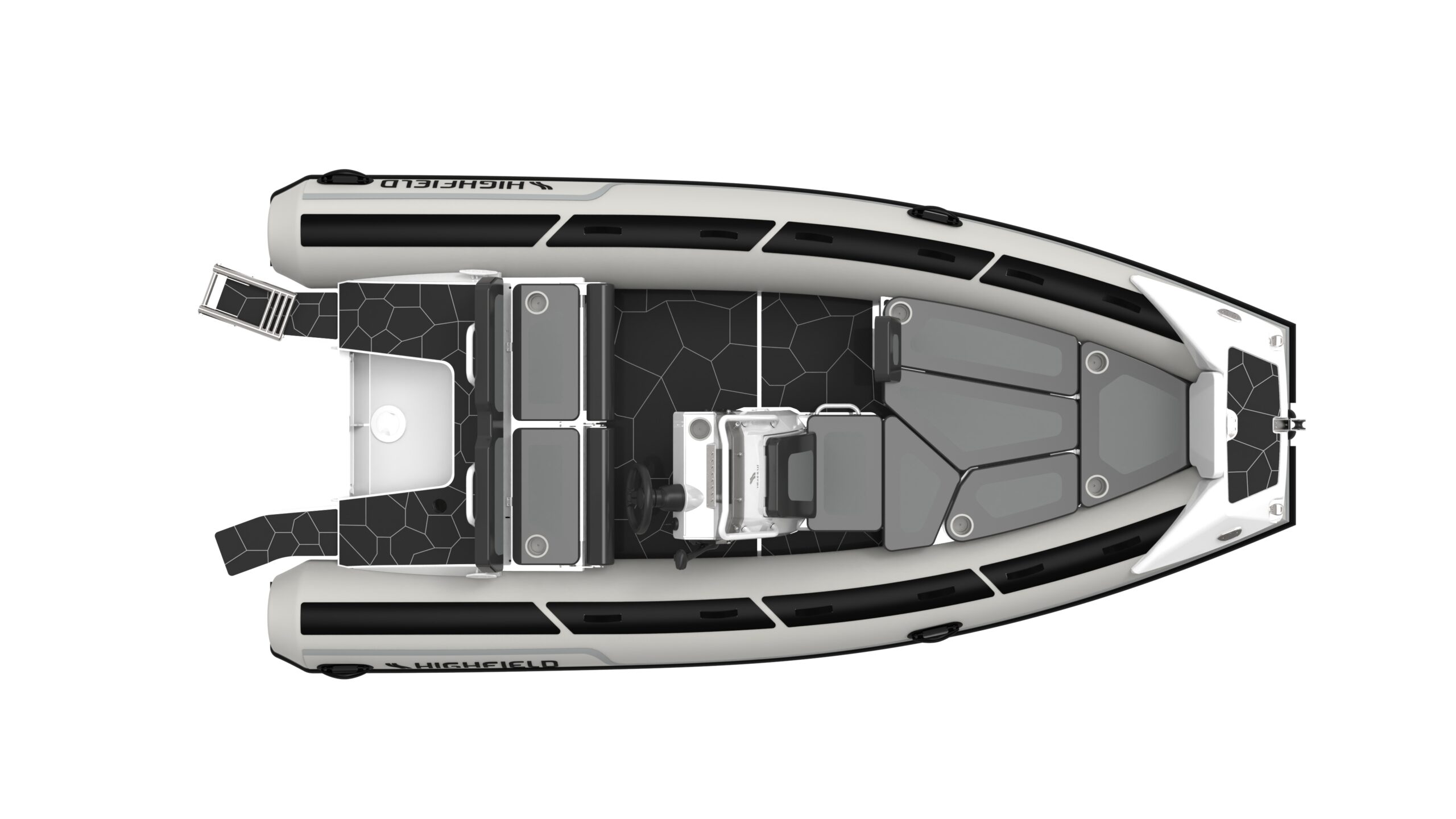

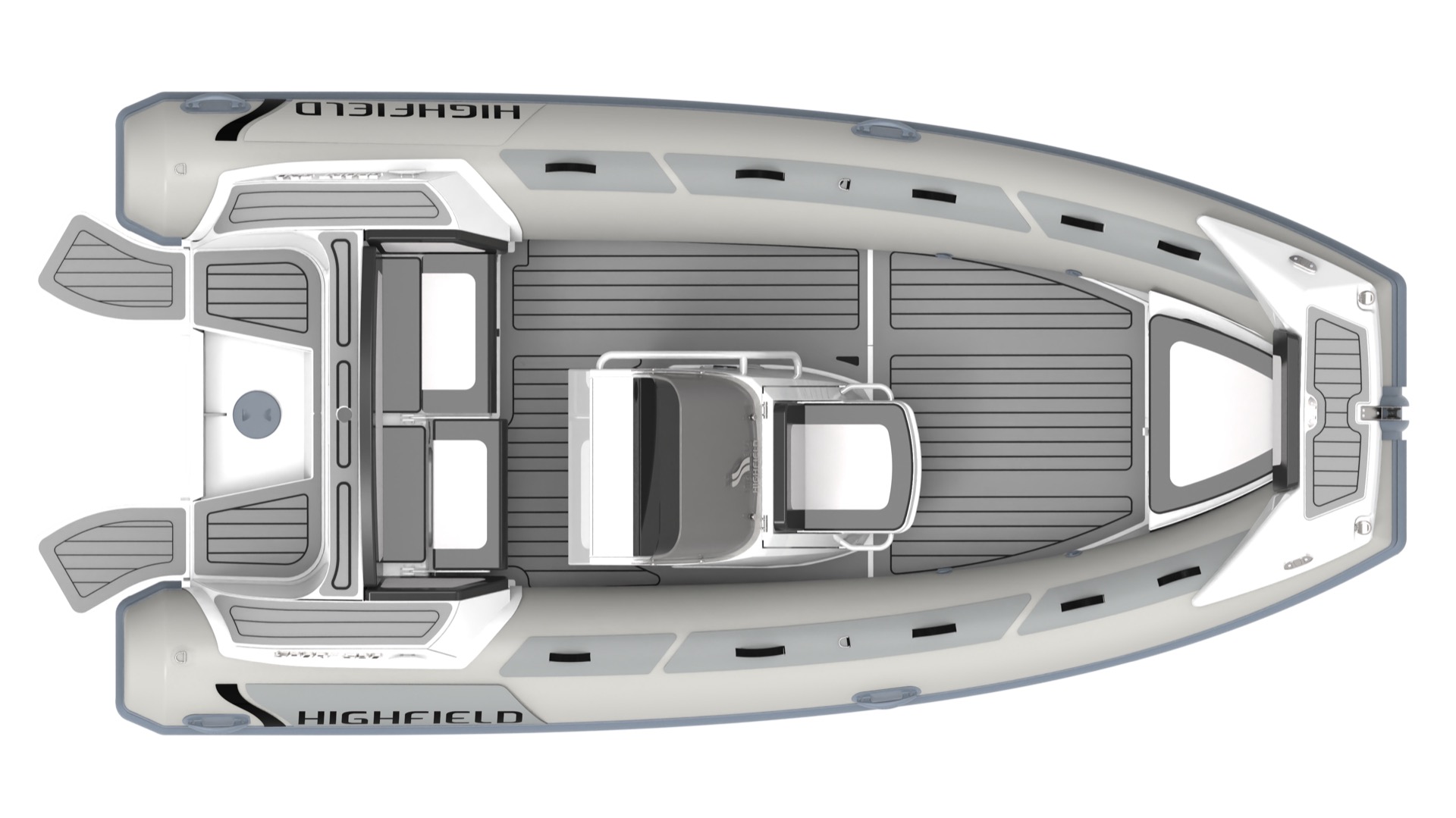

Excellent internal storage options & great ergonomics make the SP520 a true joy to be aboard and drive. The large fuel tanks gives great range between fuel stops & the optional tow post or roll bar allows you to pull a wakeboard with ease. Getting back in the water is a breeze too, as this model includes a swimming platform with ladder.

5.23m
10
105l
100hp
17' 2"
10
27.7gal
100hp
Key Features

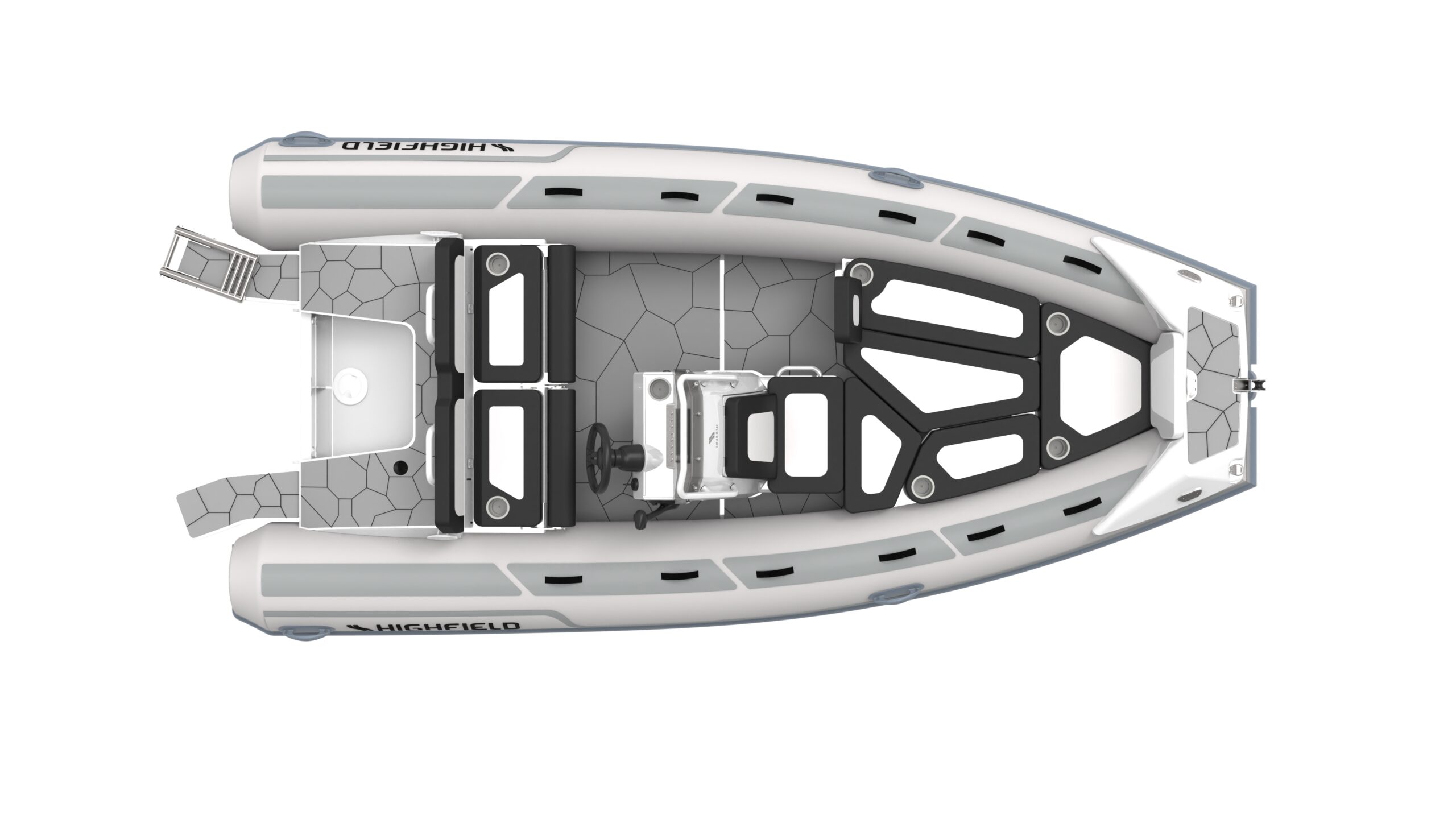

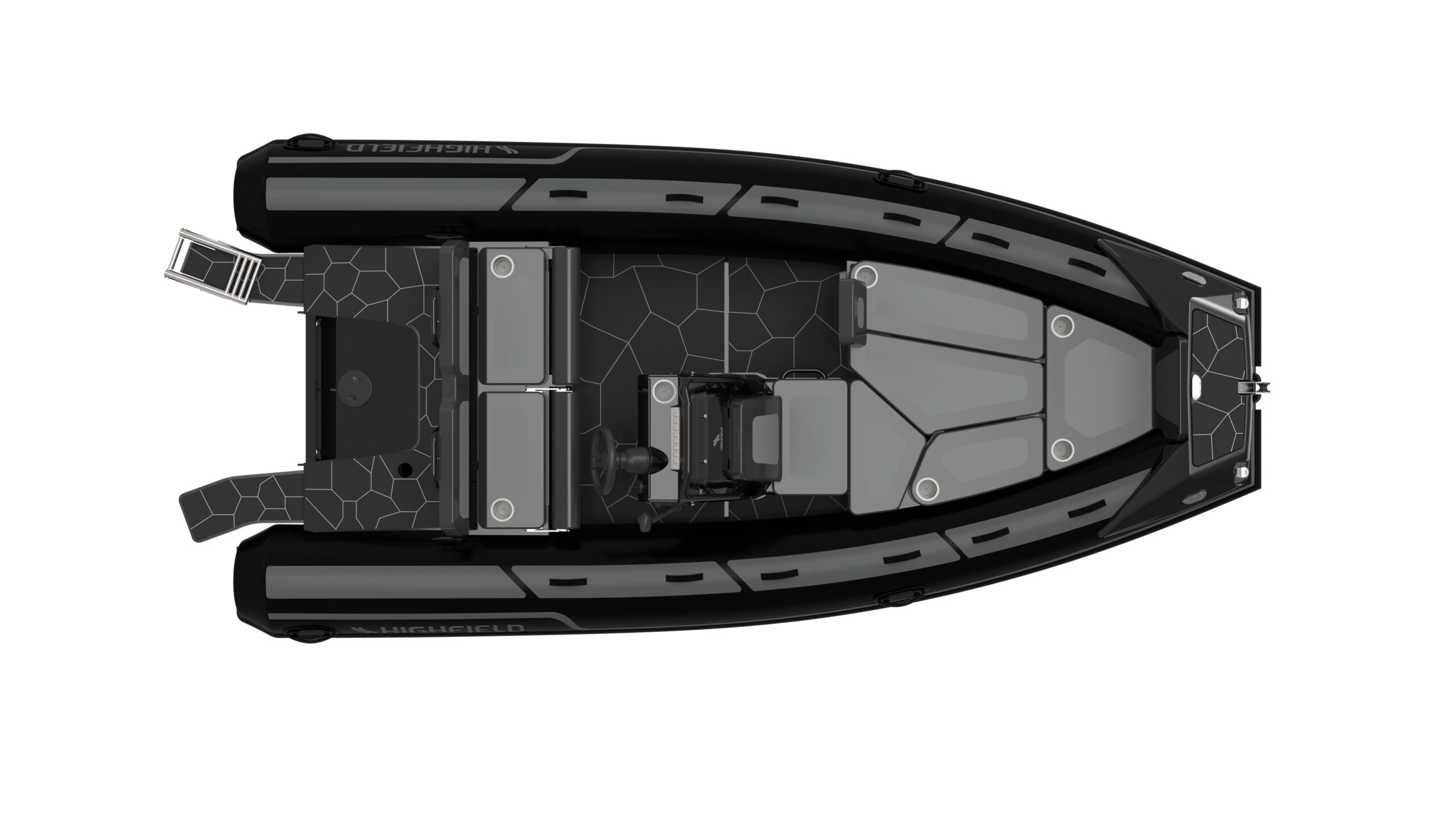

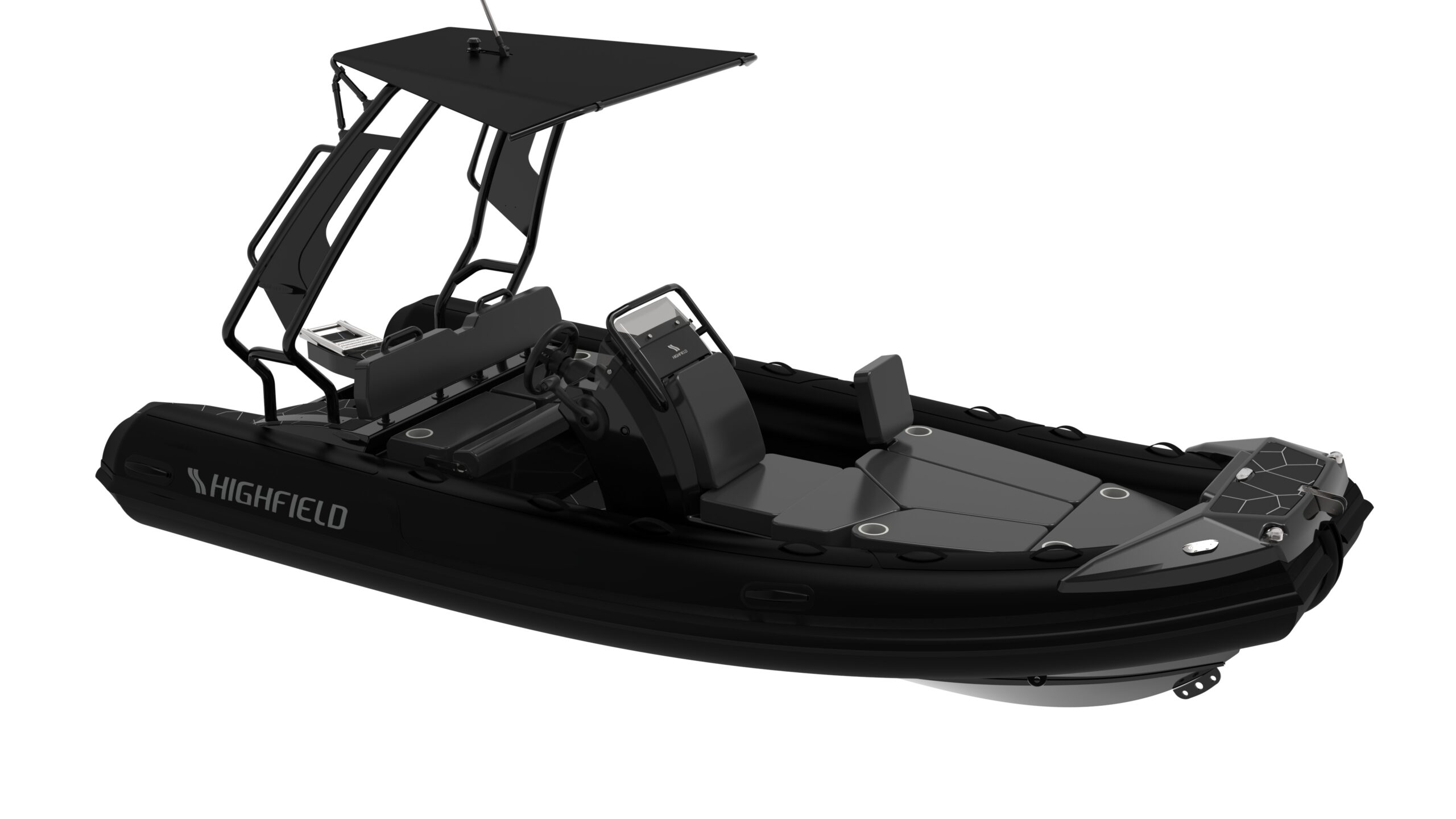

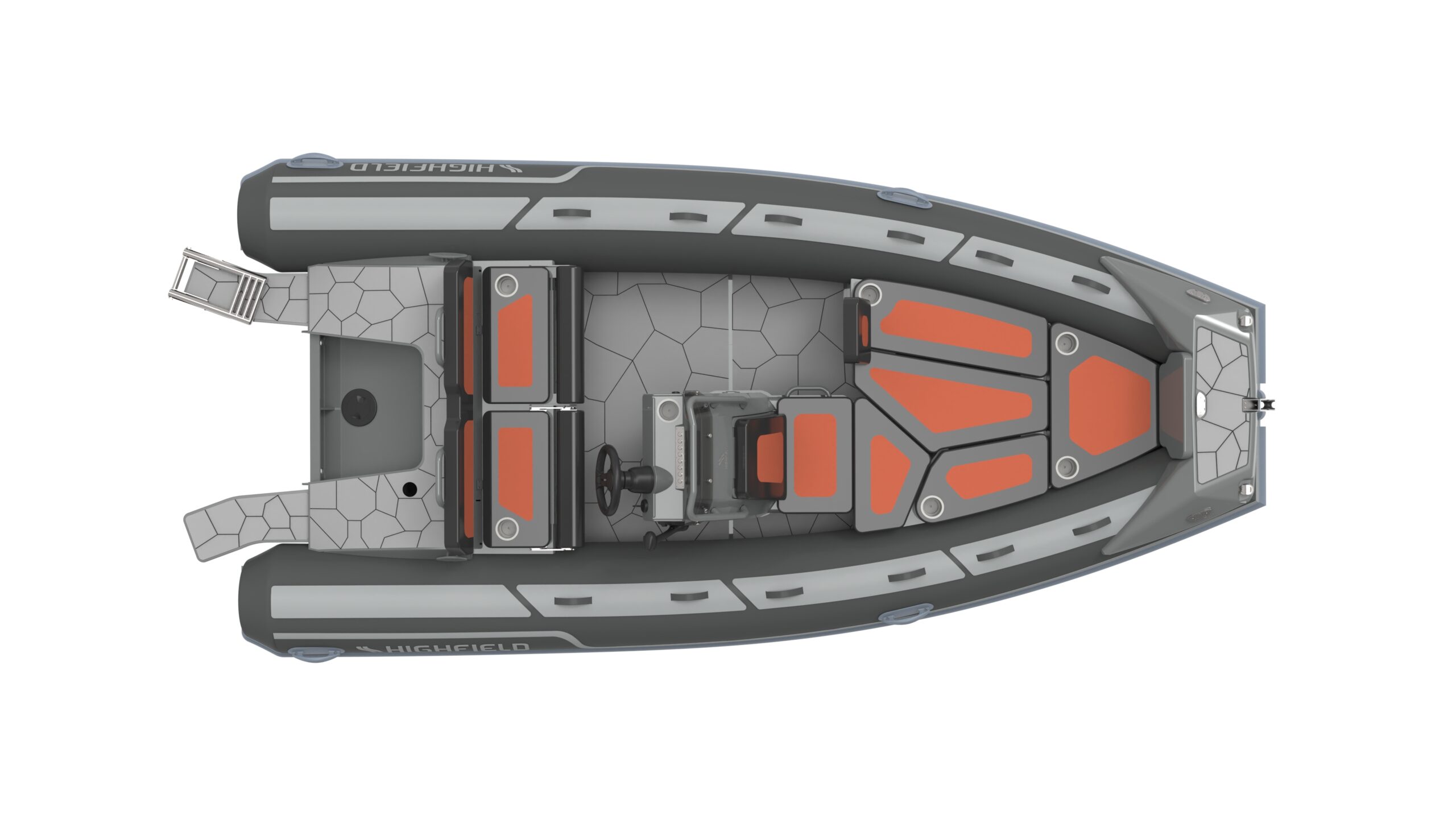

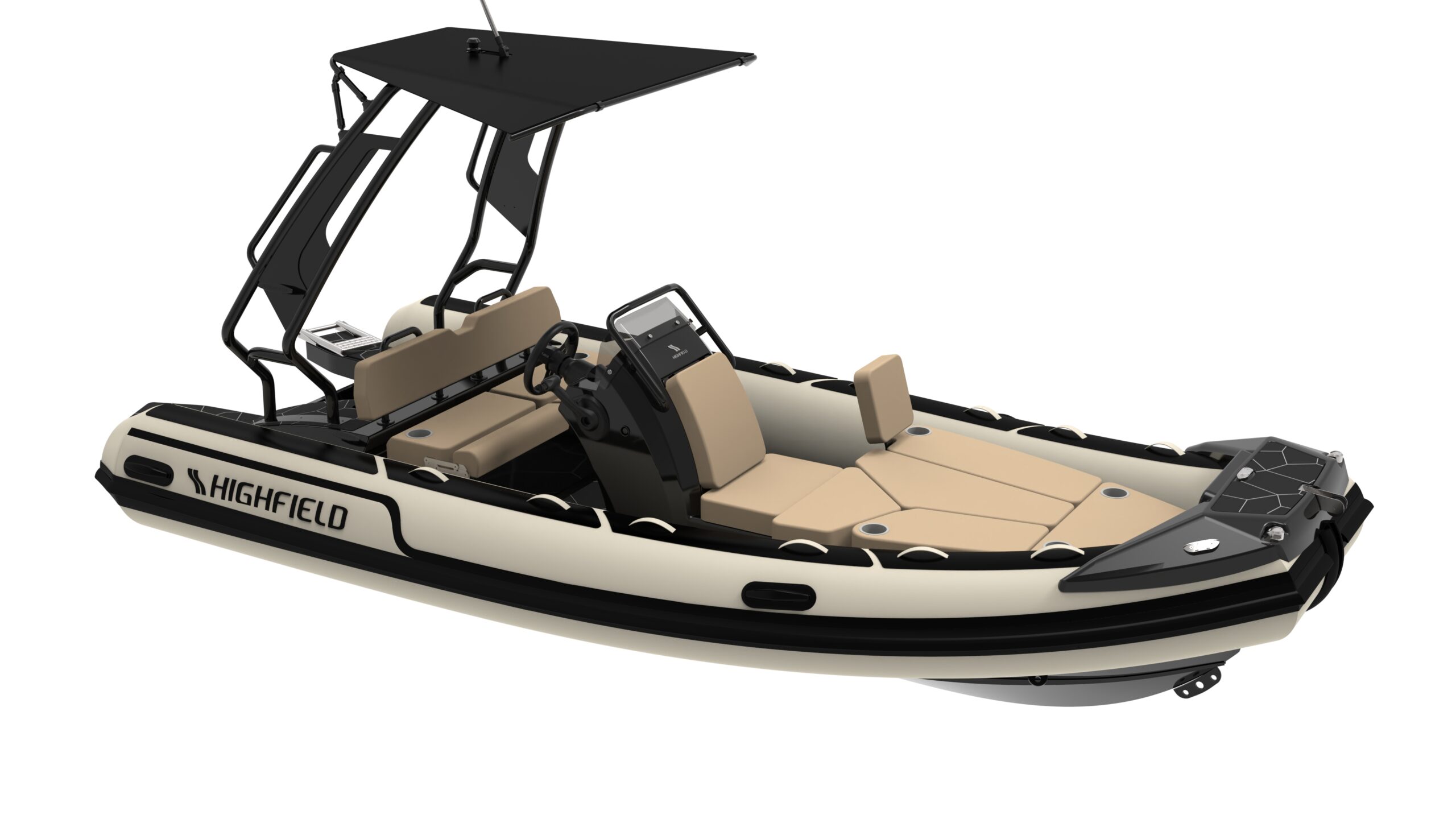

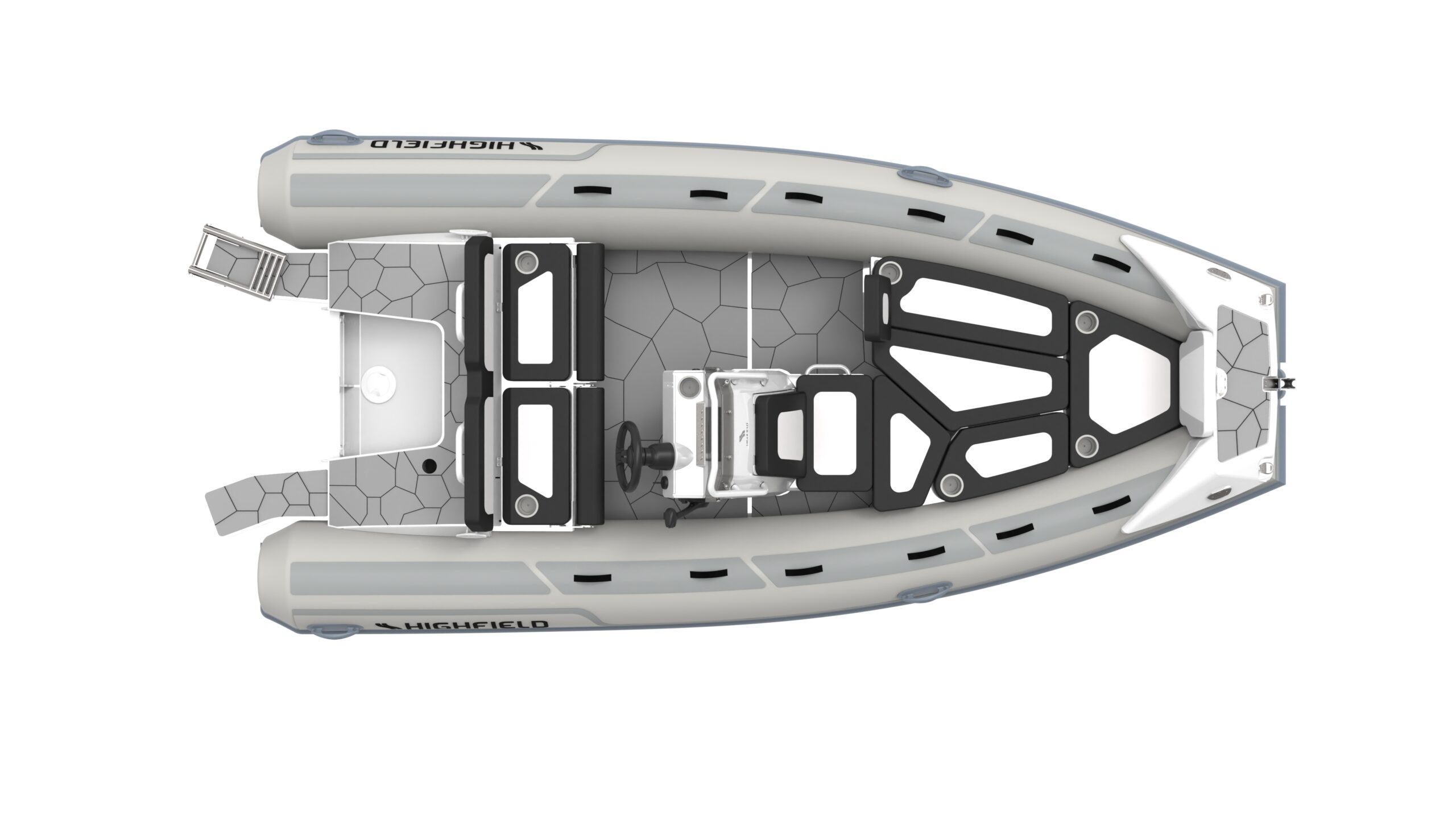

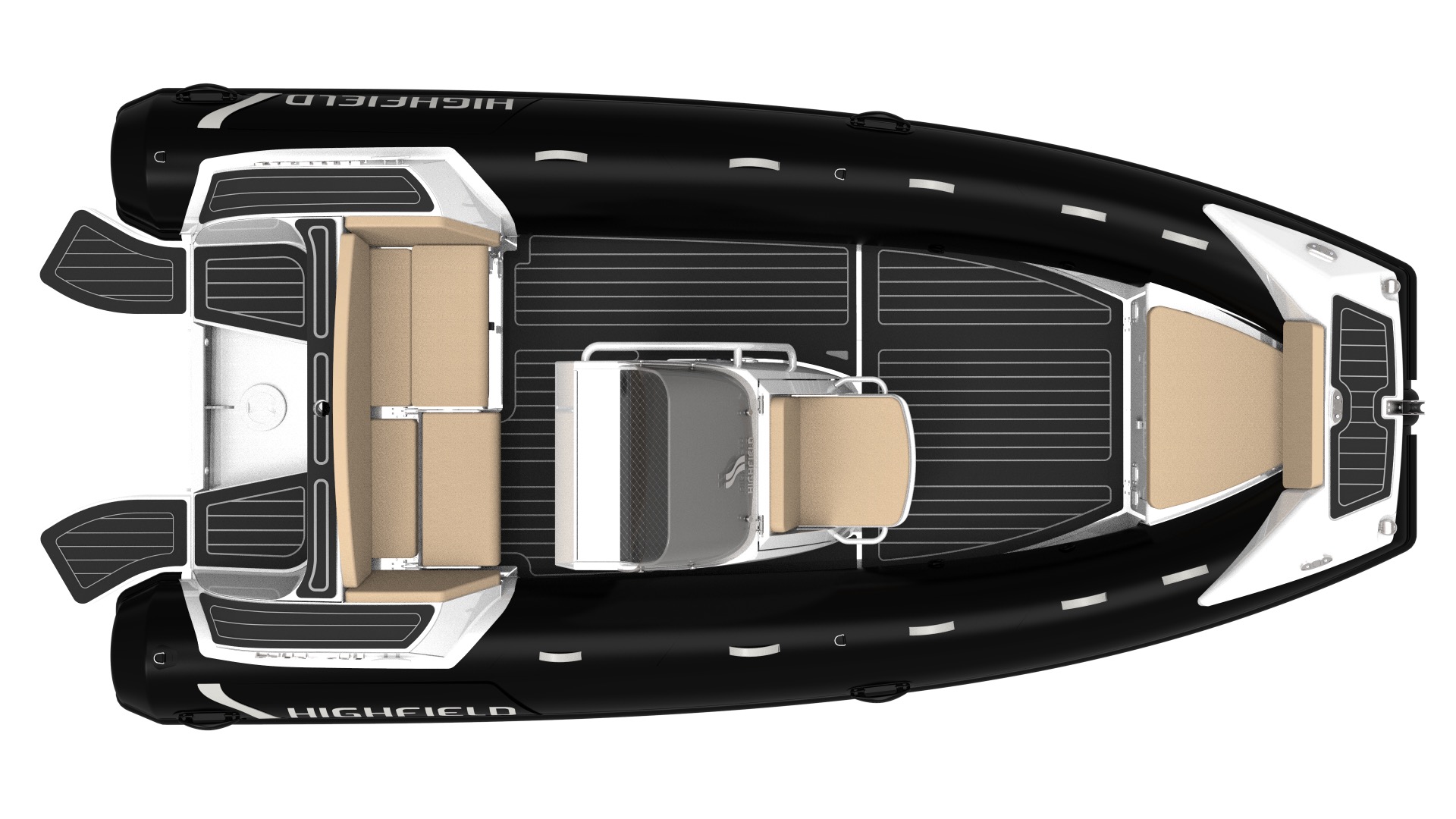

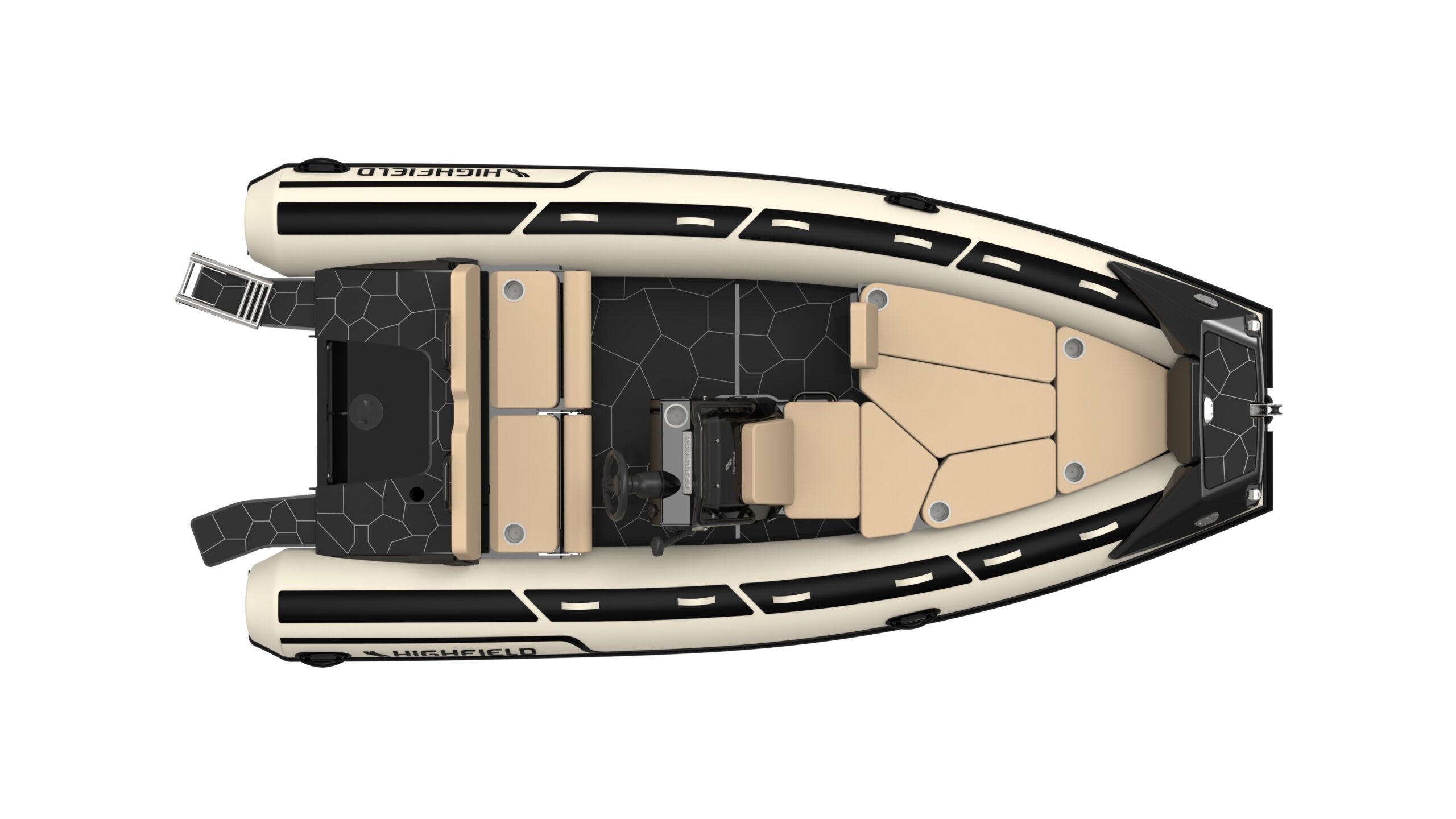

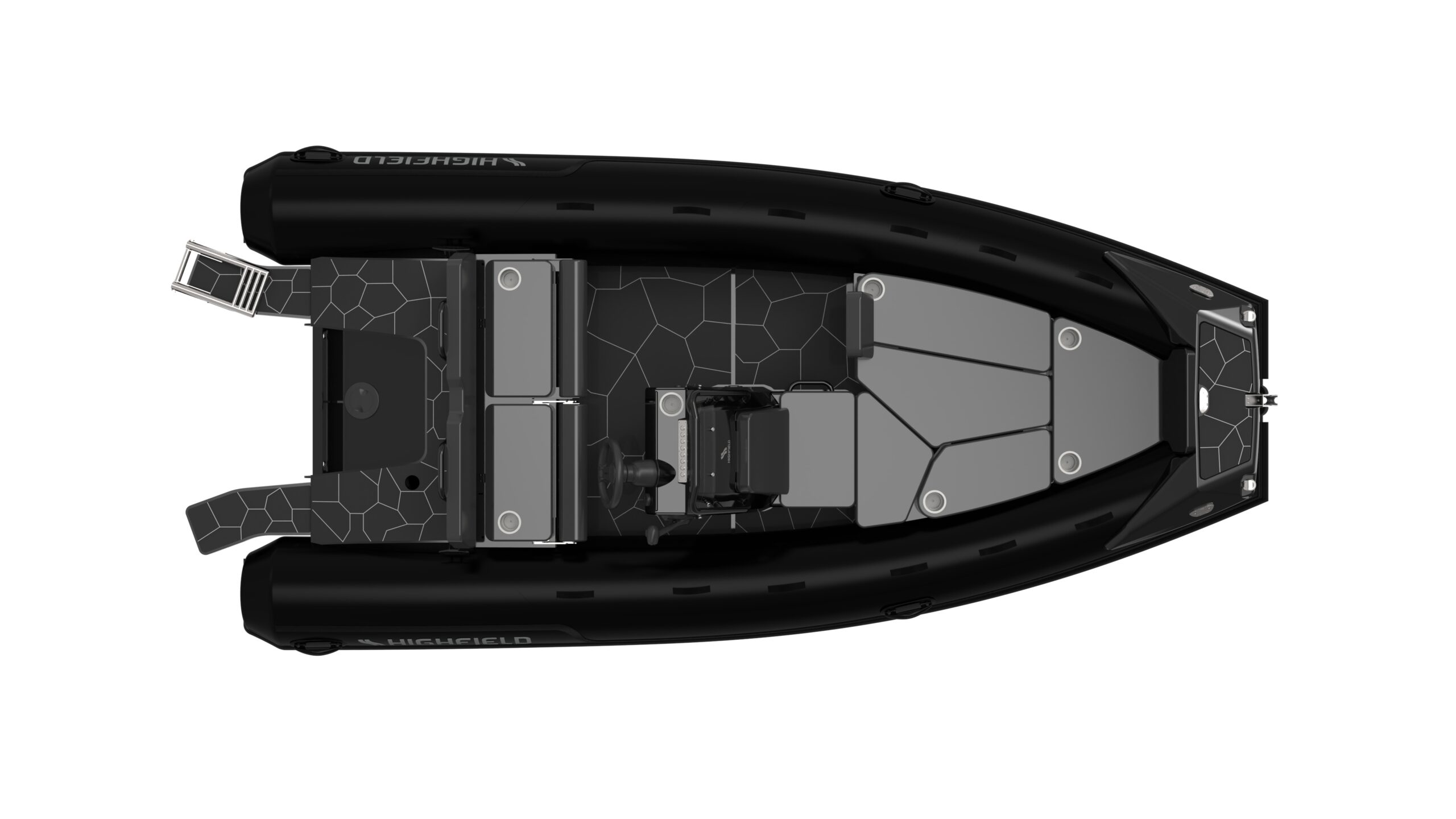

8 COLOUR SCHEMES
Specifications
Overall Length
5.23m
Internal Length
3.43m
Overall Width
2.46m
Internal Width
1.30m
Dead Rise
24°
Tube Diameter
52cm
Maximum Load
1058kg
Maximum People
10
Boat only Weight
516kg*
Fuel Tank
105l
Max HP
100hp
Engine Shaft
L
Design Category
C
Overall Length
17' 2"
Internal Length
11' 3"
Overall Width
8' 1"
Internal Width
4' 3"
Dead Rise
24°
Tube Diameter
20"
Maximum Load
2332lb
Maximum People
10
Boat only Weight
1136lb*
Fuel Tank
27.7gal
Max HP
100hp
Engine Shaft
L
Design Category
C
Standard Features
- ORCA® Hypalon or PVC tube
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Steering wheel
- Lifting points and towing eyes
- Heavy duty rubbing strake
- Keel guard
- Carbon dash for console
- Welded seams (PVC)
- Brushed foam teak finish deck
- Highfield dry bag
- Electrical pack for boat & console
- Platform with ladder
- Foot pump & repair kit
Optional Equipment
- Boat cover
- Sundeck

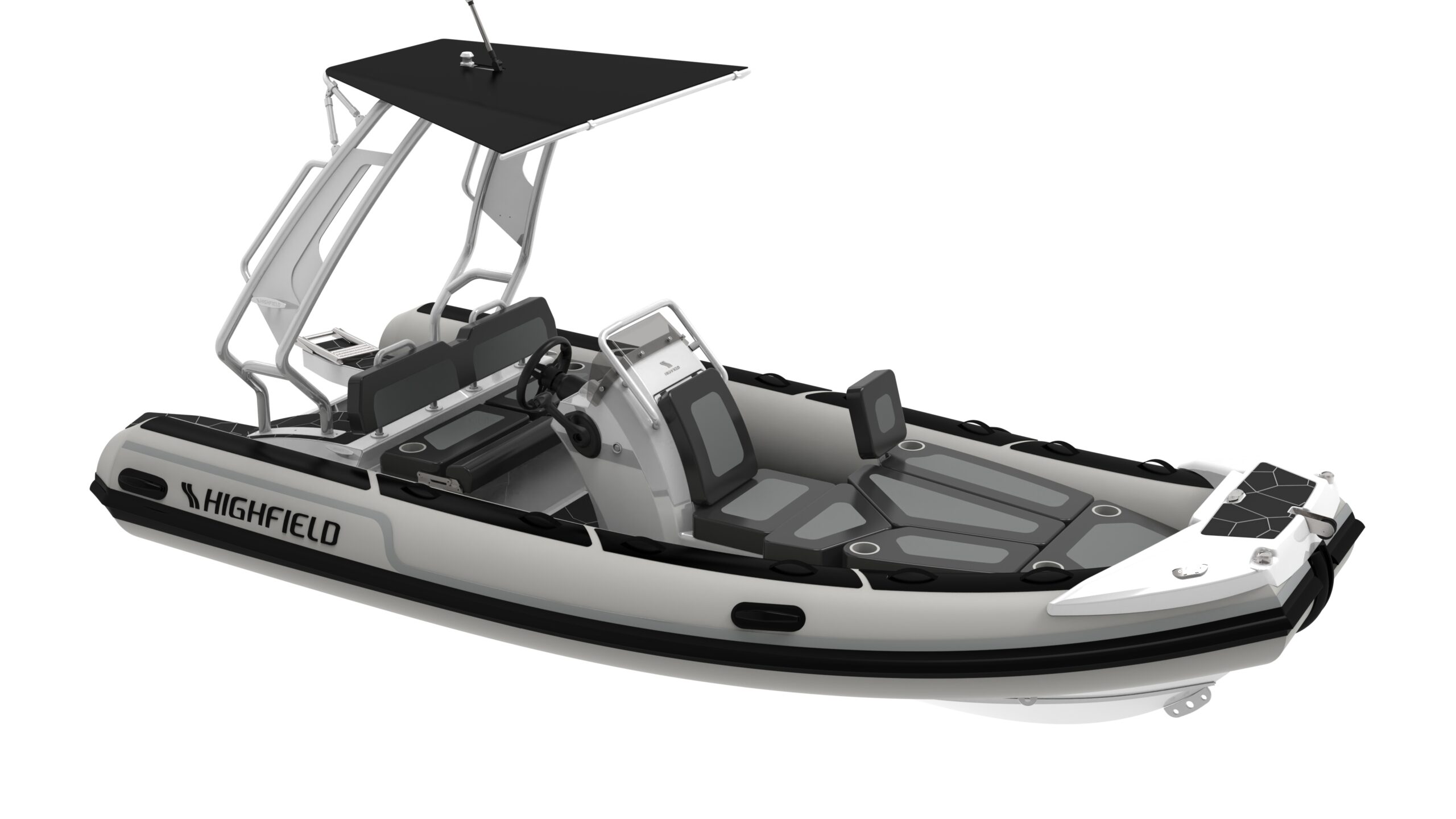

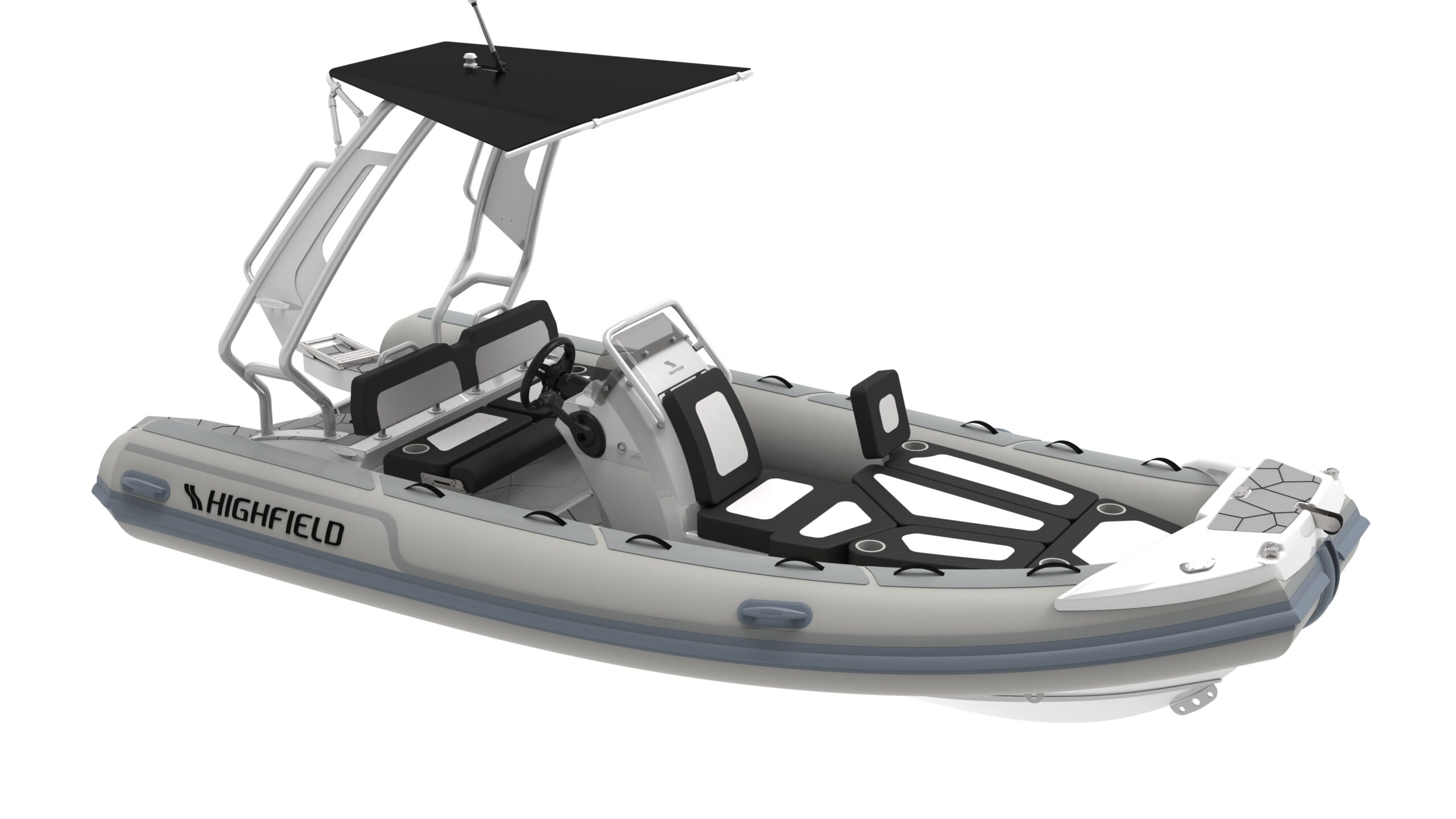

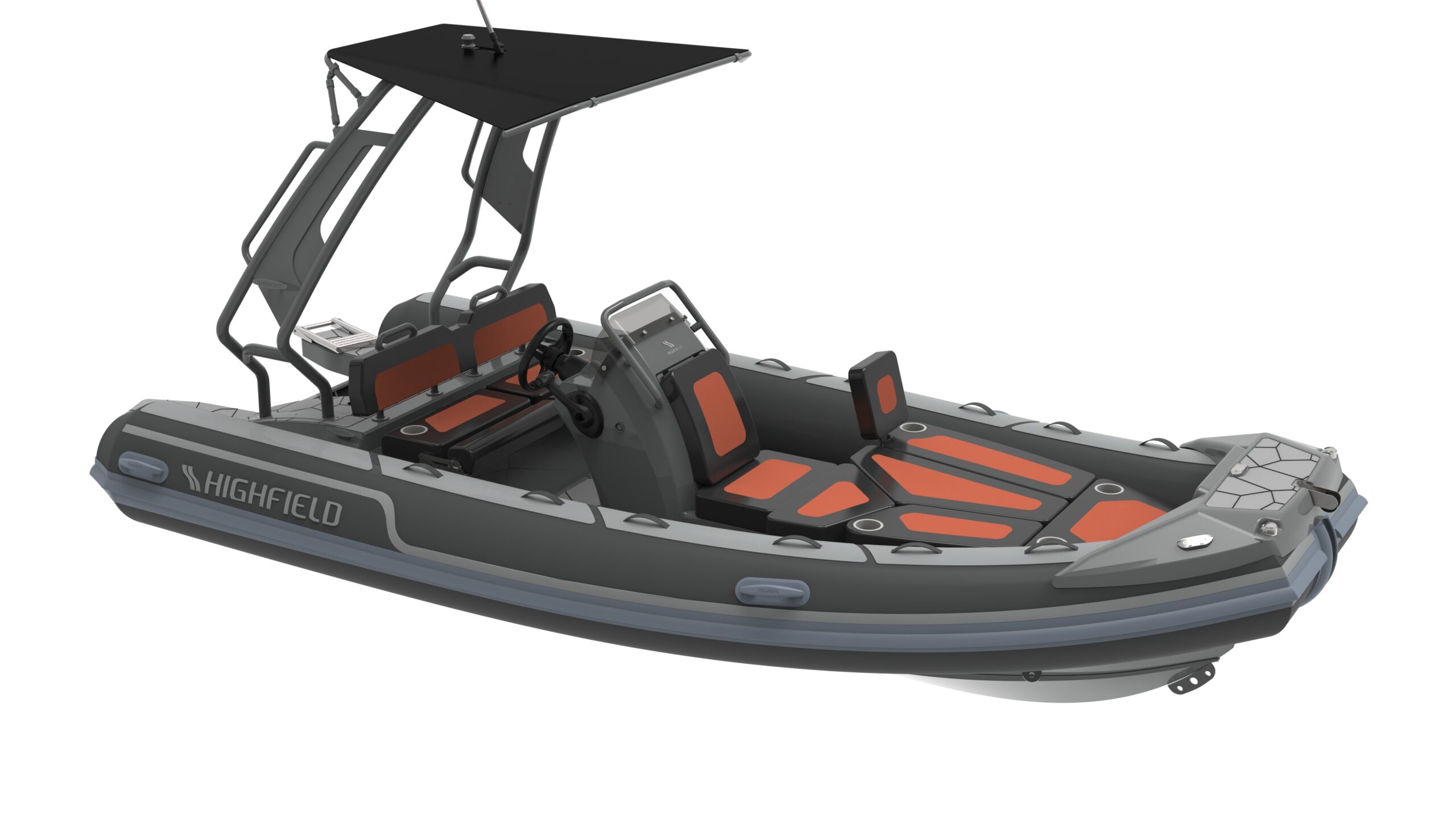

- Tow post
- Roll Bar
- Forward arch
Choosing the Right
Tube Material:
Hypalon vs. PVC
When selecting a rigid inflatable boat (RIB), one of the most important choices is the tube material. We offer two options: Hypalon and PVC. Each has its place depending on your intended use.
PVC – Economy Option
PVC is an affordable choice suitable
for light recreational use:
Best for boats used less than 30 hours per year
Must be stored under cover when not in use
Not recommended for prolonged sun exposure or harsh environments
⚠️ Please note:
PVC is more sensitive to UV rays and chemical exposure. It may degrade faster without proper care.
Hypalon – Premium & Durable
Hypalon is the premium choice for those seeking long-term durability and ease of maintenance:
Resistant to UV and chemicals
Much easier to clean and maintain
Ideal for frequent use and demanding environments
🌴 Important:
If you plan to use your boat in tropical or high-UV regions, Hypalon is the only recommended option.
