• ORCA® Hypalon or Valmex® PVC tube
  • Welded seams (PVC)
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Self-draining deck
  • Engine well
  • Integrated under-deck fuel tank
  • Integrated rear seat with cushion
  • Standup console
  • Bolster seat
  • Bow step with mooring cleat
  • Bow locker with seat cushion
  • Lifting points and towing eyes
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Highfield dry bag
  • Foot pump, paddles, repair kit


  • Tubular bolster seat
  • Jockey seats
  • Bolster folding seat
  • Rollbar
  • T-top
  • Boat cover
  • Brushed foam teak finish deck



Overall Length 5.40 m 17' 9"
Internal Length 3.70 m 12' 2"
Overall Width 2.38 m 7' 10"
Internal Width 1.30 m 4' 3"
Dead Rise 24°
Tube Diameter 52 cm 20"
Number of Air Chambers 6
Maximum Load 1188 kg 2619 lb
Maximum People 12
Boat Only Weight* 519.6 kg 1146 lb
Recommended Power 90 hp
Maximum Power 115 hp
Engine Shaft XL
Fuel Tank 105 l 27.7 gal
Design Category C
Package size for boat ( L x W x H ) 510 x 130 x 105cm 16'7" x 4'3" x 3’5"
Package size for SUS900 ( L x W x H ) 190 x 104 x 105cm 6’3” x 3’4” x 3’5”
Package size for BOL900 ( L x W x H ) 96 x 45 x 100cm 3’2” x 1’5” x 3’3”

*Includes console, bolster seat and rear seat

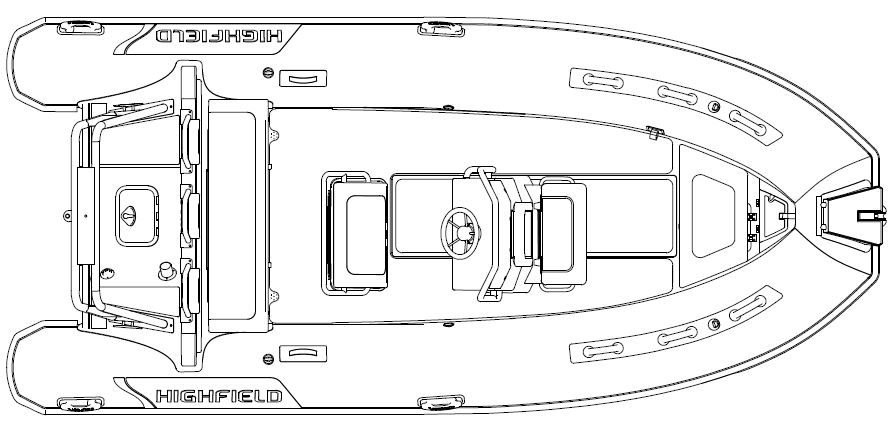

Based on the acclaimed hull of the Ocean Master (OM) range, the Deluxe (DL) series introduces a more elaborated transom with integrated rear seat and engine well. This new setup offers a vast storage and higher level of comfort for family cruising. Built to last, the series is designed with tough conditions in mind.

With the impermeable qualities of our aluminium hulls there’s no need to worry about gelcoat chips, or putting the boat on a beach or a trailer. Your Highfield won’t delaminate over time, retaining its agile performance and weighing the same in 10 years as the day you towed it away from the dealers showroom.

The hull of the Deluxe 540 is built of 4mm thick powder coated marine grade aluminium. The tubes are made of 1100 dtex coated fabric.
